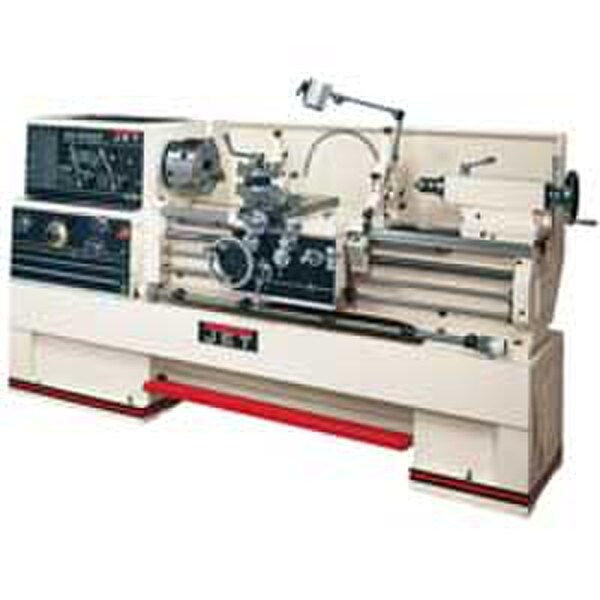

JT9-321961 | GH-1860ZX With Taper Attachment and Collet Closer
Overview
Jet 321961
Gh-1860Zx With Taper Attachment And Collet Closer
A JET exclusive design, the ZX-Series Large Spindle Bore Lathe provides power, precision, efficiency and reliability to your metal shop. A one piece cast iron base absorbs vibrations during operation to allow heavier cuts and ensure accuracy, while the Universal Gearbox eliminates the need to change gears. Features you've come to expect in a JET Lathe that is backed by the industry-leading JET Two Year Warranty
Features:- 16", 18" AND 22" ZX SERIES LARGE SPINDLE BORE LATHES
- Uniquely designed exclusively by JET
- ISO 9001 certified manufacturer
- 3-1/8" bore spindle is supported by two tapered and one ball bearing
- Chrome molybdenum headstock gears are hardened, ground, and shaved
- Universal gearbox allows inch, metric, diametral, and module pitch threads, no change gears required
- Carriage Feature one-shot lubrication and Turcite B on bed sliding surfaces
- T-slotted compound slide featuring a four-way tool post
- One-piece cast iron base absorbs vibration allowing heavier cuts
- High quality ANSI Class 50 wear-resistant cast iron bed ways are hardened and ground
- Removable gap allows up to 23-5/8" diameter work on 16", 27-1/2" on 18"
- Five position automatic carriage stop increases productivity
- Attractive chrome control levers, dials, and knobs complete this impressive package
- Tolerance test certificate included
- 10" 3-jaw chuck with top reversing jaws
- 12" 4-jaw chuck
- 12" face plate (16" models)
- 16" face plate (18" models)
- Four-way tool post
- Follow rest
- Large capacity steady rest
- Fully integrated coolant system
- Full length splash guard and coolant return
- Large easy to use foot brake
- Articulating halogen work lamp
- Centrally located controls with jog button
Technical Documents
Jet ZX Series Spindle Bore Geared Head Lathes Manual (PDF)We are always wanting to provide more information! In need of a technical document? Let us know!
