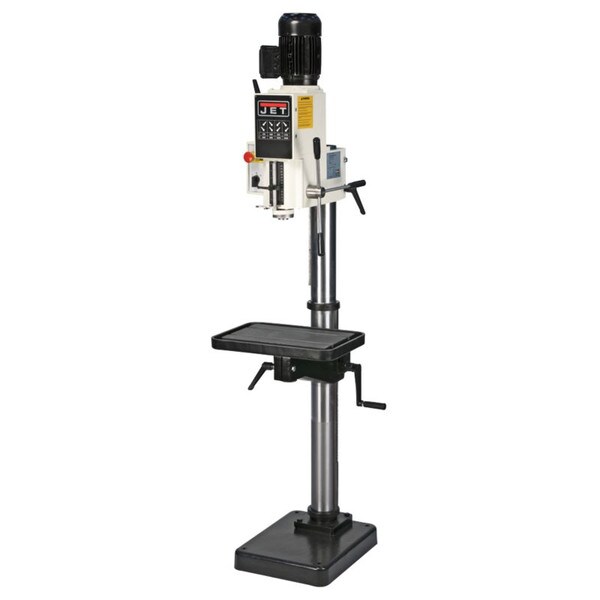

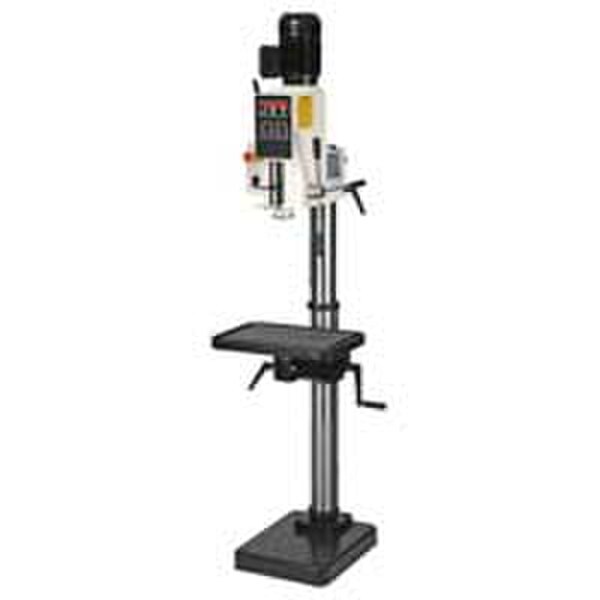

354028 | 20'' Arboga Gear Head Drill Press, 1 to 1-1/2 HP, 220V, 3ph

(0)No Reviews yet
$7,223.99
$7740
$516.0100000000002
Warning: California Proposition 65 | Trade Regulations Advisory Notice
Item Ships free
Order total must be over $999.99, under 20 lbs and shipping within continental USA

Get your tool under our Flex Warranty!

We will fix it or replace it.

FLEX Warranty keeps your tools safe when manufacturer warranties come up short. Bad luck deserves good coverage.

*Manufacturer warranty only cover you for so long. FLEX Warranty extends and enhances your coverage for up to two years.

Non-Returnable
Spare Parts, Specialty and Custom items are non-returnable and non-refundable
Back

Overview

Jet 354028

J-A2608-2, 20 Arboga Gear Head Drill Press 220V, 3Ph

A workhorse of a machine for precision production drilling applications. The head and table rotate 360 degrees around the column for maximum mobility. Eight drilling speeds provide high torque at lower speeds for both small and medium hole drilling. Special helical gears help maintain this drill's smooth, quiet operation.

Features:
  • Helical gears for smooth, quiet operation
  • Quick release drill ejector
  • Safety latch to prevent head dropping when unclampt
  • Eight spindle speed
  • T-Slotted table with coolant through
  • Head and table rotate 360 degrees around the column
  • 2 position, High/Low switch
  • 3-15/16" Column diameter
  • English/Metric depth gage
Back

Technical Specifications

Type
Geared Hed Drill Press
Drill Type
Geared Head
Motor - hp
1 to 1-1/2 HP, 220V, 3ph
Drilling Capacity - mild steel
1-1/4''
Spindle Taper
MT-3
Weight - lbs
475
