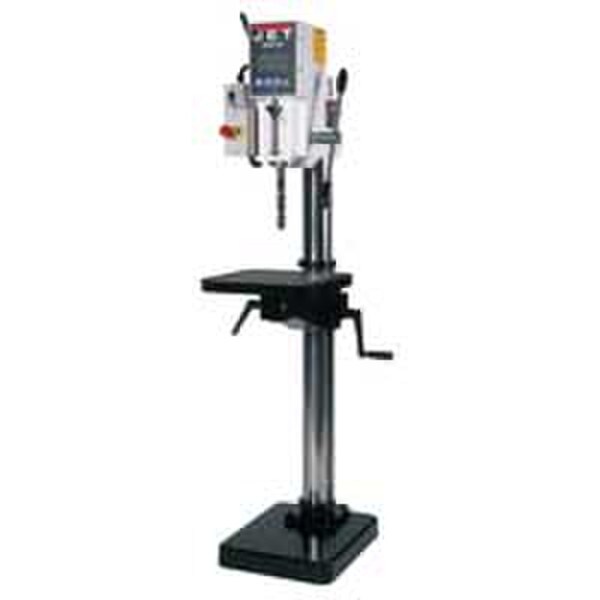

354037 | 25'' Arboga Gear Head Drill Press with Powerfeed, 1-1/2 to 2 HP, 440V, 3ph
Overview
Jet 354037
J-A3008M-Pf4, 26 Arboga Gear Head Drill Press With Powerfeed 440V, 3Ph
This premier drill combines power and precision with a speed range of 108-1800 RPMs to handle virtually any drilling application. Driven by a sturdy 3HP motor, the drilling capabilities of up to 1-7/8" and tapping to 1" in steel! Exceptional support is provided by a large 5-1/2" steel column. Powerfeed engagement is controlled by one selector switch which makes this the perfect drill press for any shop.
Features:- Helical gears for smooth, quiet operation
- Quick release drill ejector
- English/Metric depth gauge
- Machined T-slotted base plate
- Head and table rotate 360 degrees around column
- No-Volt release prevents spindle start when power returns after shut down
- Fully enclosed spindle
- No-volt release prevents spindle start when power returns after shut down
Technical Specifications
Type
Geared Hed Drill Press
Drill Type
Geared Head
Motor - hp
1-1/2 to 2 HP, 440V, 3ph
Drilling Capacity - mild steel
1-1/4''
Spindle Taper
MT-3
Weight - lbs
565
