354040 | J-A4008M-PF2, 26 Arboga Gear Head Drill Press With Powerfeed 220V, 3Ph
Overview

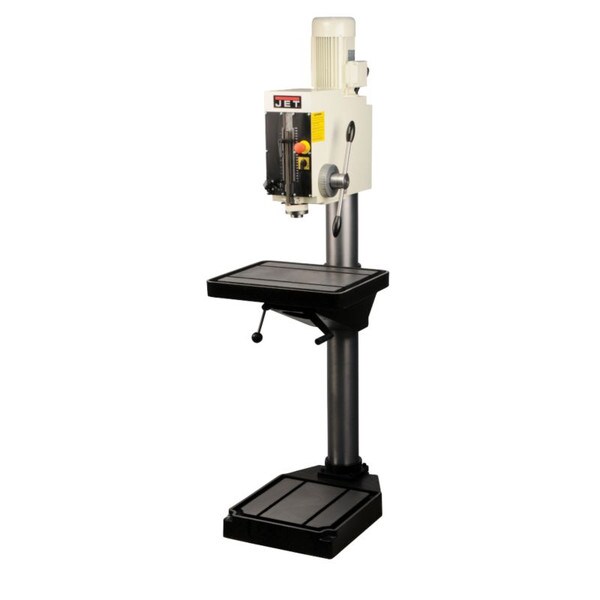

Jet 354040
J-A4008M-Pf2, 26 Arboga Gear Head Drill Press With Powerfeed 220V, 3Ph
This premier drill combines power and precision with a speed range of 108-1800 RPMs to handle virtually any drilling application. Driven by a sturdy 3HP motor, the drilling capabilities of up to 1-7/8" and tapping to 1" in steel! Exceptional support is provided by a large 5-1/2" steel column. Powerfeed engagement is controlled by one selector switch which makes this the perfect drill press for any shop.
Features:- Helical gears for smooth, quiet operation
- Quick release drill ejector
- English/Metric depth gauge
- Machined T-slotted base plate
- Head and table rotate 360 degrees around column
- No-Volt release prevents spindle start when power returns after shut down
- Fully enclosed spindle
- No-volt release prevents spindle start when power returns after shut down
