JT9-354169 | JDP-17MF, 16-1/2'' Floor Drill Press, 3/4HP 1PH 115/230V
Overview
Jet 354169
Jdp-17Mf, 16-1/2" Floor Drill Press, 3/4Hp 1Ph 115/230V

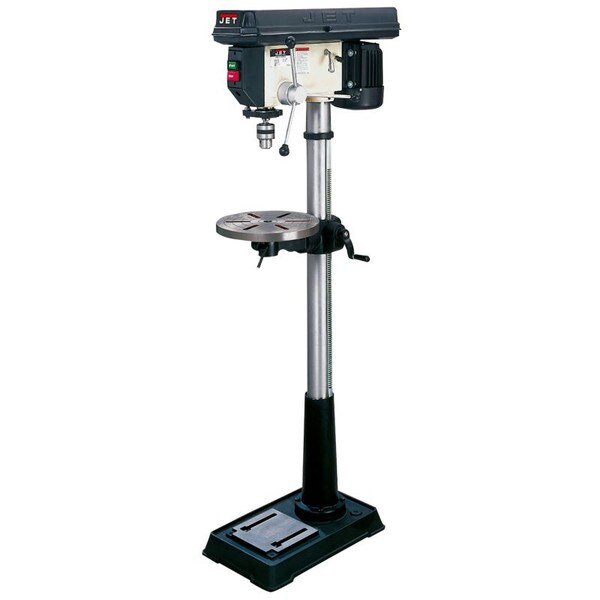

The JET JDP-17MF Floor Drill Press is a true woodworker's drill press. With 16 speeds, it lets you choose the best speed for the job. It comes equipped with a quick release crank operated worktable, worklight, X-pattern mounting grooves, depth stop, and adjustable tension spindle return spring which is ideal for repetitive drilling of the same depth.
Features:- 16 speeds lets you choose the best speed for the job
- Quick release crank operated worktable height adjustment rotates + or - 45° for versatility
- Hinged metal belt and pulley cover provides easy access to the quick adjustment motor mount to allow rapid spindle speed changes
- "X" pattern mounting grooves in table allow mounting a fence when table is in reverse position
- Depth stop displays inch/mm and has a quick set bolt for fast, accurate adjustments
- Spindle has high-quality ball bearing construction for long life
- Adjustable tension spindle return spring is ideal for repetitive drilling of the same depth
- Built-in worklight (bulb not included) provides additional visibility of your work
Technical Specifications
Type
Woodworking Drill Press
Swing - inches
16-1/2
Spindle Travel - inches
4-3/8
Spindle Distance to Table - inches
29-1/8
Spindle Distance to Base - inches
49
Spindle Speeds
16
Drilling Capacity - inches
5/8
Chuck Capacity - inches
5/8
Speeds - rpm
200 - 3630
Spindle Taper
MT2
Table Size - inches
13-3/4
Amps
9/4.5
Rated Power - hp
.75
Motor Phase
1
Voltage
115/230V
Motor Type
.75hp, 1ph, 115/230V
Weight - lbs
189
