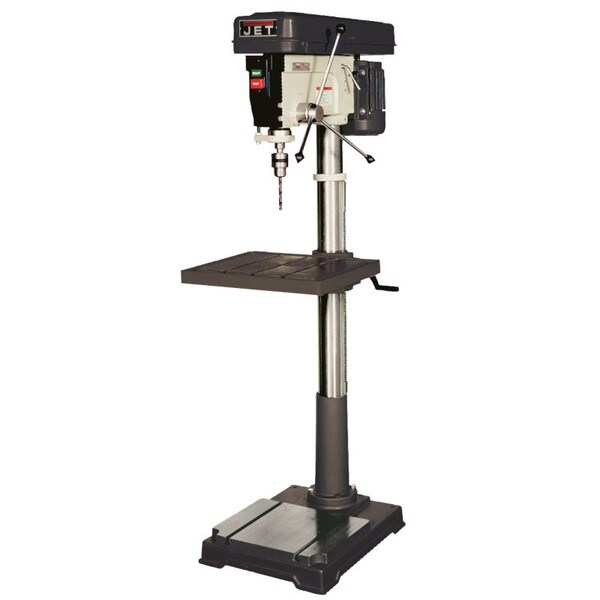

JT9-354402 | 20'' Floor Model Drill Press, 1 HP, 115/230V, 1ph
Overview
Jet 354402
J-2550, 20 Floor Model Drill Press 115V 1Ph
Accuracy, stability and versatility are the benchmark features of the JET 15" and 20" Drill Presses. This high quality line of JET Drill Presses offer a greater range in spindle speeds than other machines of this class. JET backs their machines with the industry-leading Two Year Warranty.
Features:- Cast iron head
- Large quill allows greater accuracy
- Head casting features a permanently lubricated ball bearing spindle assembly, using four heavy duty ball bearings in an enclosed quill for longer life.
- Massive T-slotted production work table (Model J-2550 only)
- Table tilts 45°
- Large ground steel column diameter for maximum head and table support
- 3-3/8” stroke for deep hole applications
- 5/8" drill chuck and arbor
- Accurate depth stop for precise hole depths
Technical Specifications
Type
Step Pulley Drill Press
Drill Type
Step Pulley
Motor - hp
1 HP, 115/230V, 1ph
Drilling Capacity - mild steel
5/8''
Spindle Taper
MT-3
Weight - lbs
304
