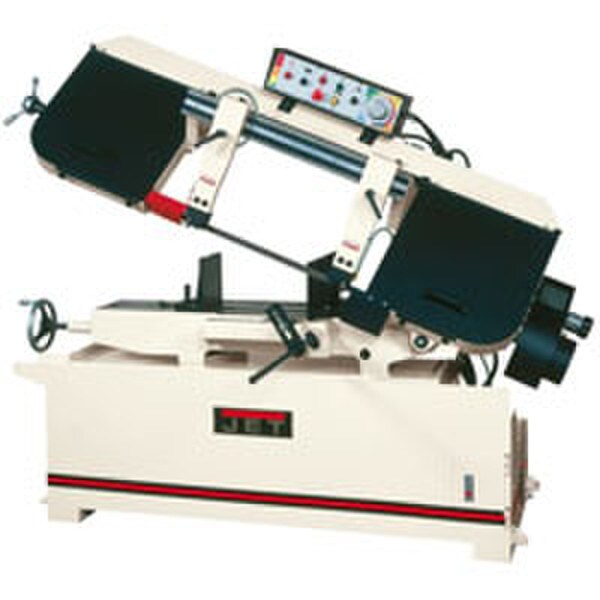

JT9-414471 | 13'' Semi-Automatic Horizontal Band Saw, 3 HP, 230/460V, 3Ph
Overview
Jet 414471
Hbs-1321W, 13 Semi-Auto Horizontal Bandsaw 230/460V 3Ph
Loaded with operational and safety features, the JET HBS-1321W makes starting and completing any job a smooth operation. Loaded with special features, this JET saw is perfect for your shop or worksite.
Features:- 13" SEMI-AUTO HORIZONTAL BANDSAW
- Semi-automatic bow raises after cut is complete to predetermined height
- Fully adjustable hydraulic downfeed controls the rate of descent
- Variable blade speed allows optimum cutting performance
- Safety switch shuts off motor if band breaks
- Quick-positioning vise lessens set-up time
- Large handwheel and built-in gauge provides easy blade tensioning
- Coolant is distributed through the blade guides
- Cleaning hose and nozzle assist in washing chips away
- Easy access chip tray allows quick cleanup
- Self-propelled blade brush extends the blade life
- Automatic shut-off after cut
- Carbide blade guides with rollers
- Coolant system
- 3/4VT Bi-metal blade
- Adjustable material stop
Technical Specifications
Type
Semi-Automatic Horizontal Band Saw
Blade size - inches
13
Saw Type
Semi-Automatic
Drive Type
Variable Speed Pulley
Motor - hp
3 HP, 230/460V, 3Ph
Mitering Type
Vise
Mitering Degrees
45°
Blade Speed - sfpm
260
Weight - lbs
1276
