JT9-414479 | 10 x 14'' Horizontal Mitering Bandsaw, 2 HP, 230V, 1Ph
Overview
Jet 414479

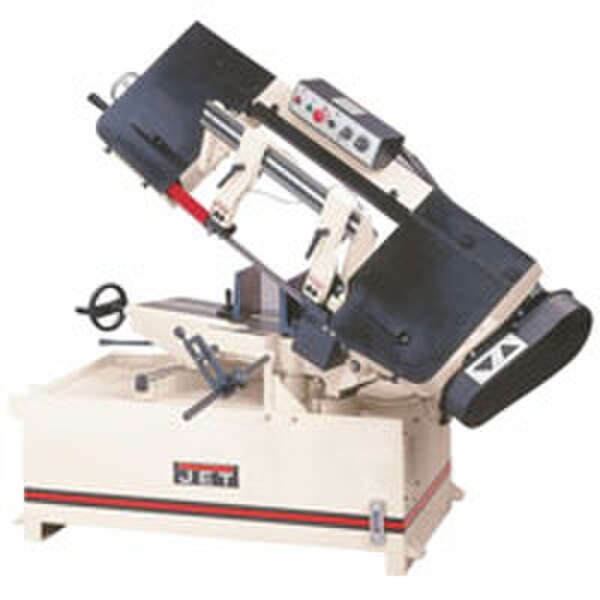

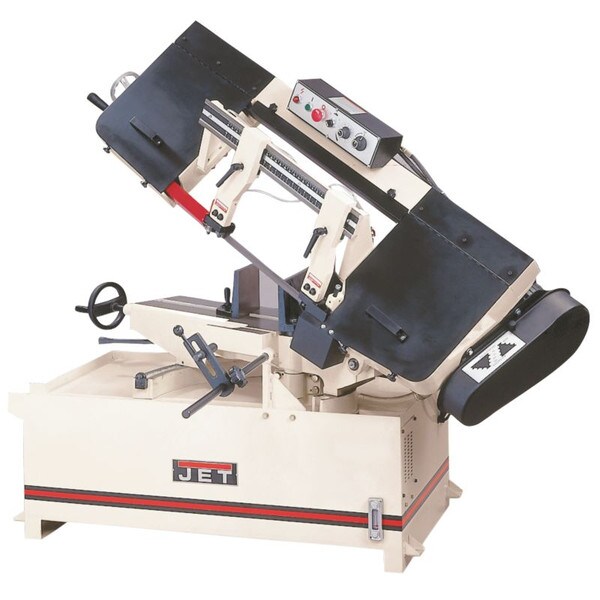

Mbs-1014W-1, 10 X 14" Horizontal Mitering Bandsaw 230V 1Ph
JET Mitering Horizontal bandsaws unique design features a swiveling head while the base remains stationary. This allows the stock to remain same position while making accurate crosscuts and miters. Backed by the industry leading two year warranty, JET Mitering Bandsaws are built to last and deliver precision results.
Features:- 10" HORIZONTAL MITERING BANDSAW
- Unique design Feature a swivel-head for miter cutting structurals, pipe and tubing
- Miter head swivels from 90? to 45?, while the stock remains in the same position
- Large, easy-to-read scale for positioning saw head
- Quick-positioning vise lessens set-up time
- Large handwheel and built-in gauge for easy blade tensioning
- Coolant is distributed through the blade guides
- Blade brush is built-in and self-propelled
- Fully adjustable hydraulic downfeed with separate on/off valve
- Automatic shut-off after cut
- Carbide blade guides with rollers
- Coolant system
- 4/6VT Bi-metal blade
- Adjustable material stop
Technical Specifications
Type
Horizontal Mitering Bandsaw
Blade size - inches
10 x 14
Saw Type
Horizontal Mitering
Drive Type
Belt Drive
Motor - hp
2 HP, 230V, 1Ph
Mitering Type
Head
Mitering Degrees
45°
Blade Speed - sfpm
330
Weight - lbs
948
