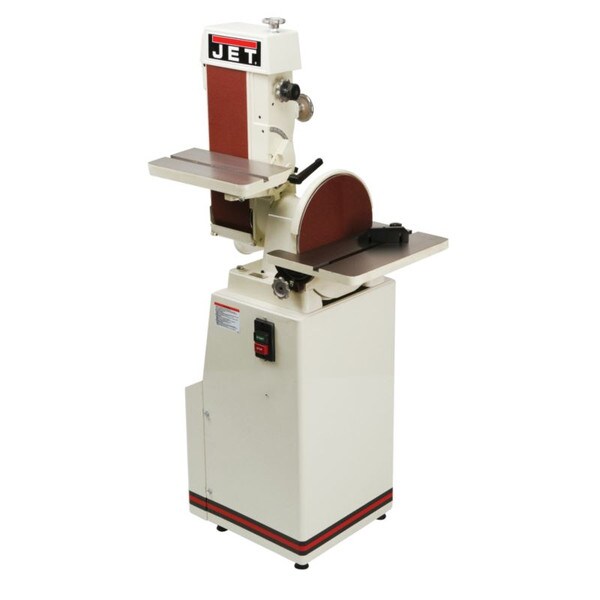

JT9-414551 | 6'' x 48'' Industrial Combination Belt and Disc Finishing Machine, 1-1/2 HP, 115V, 1Ph
Overview
Jet 414551
J-4200A, 6 X 48 Industrial Combination Belt And Disc Finishing Machine 115V 1Ph
High-speed precision and amazing versatility. This rugged piece of equipment has a belt that operates at any angle, and conforms to curves, angles or circular finishing and grinding operations. Machinists who take great pride in their work prefer the JET Industrial Combination Belt & Disc Finishing Machine
Features:- Belt operates at any angle
- Powered by a heavy duty 1-1/2 HP TEFC motor
- Contour finishing, mitering, flat finishing, beveling and precision finishing
- Plain and compound miters are easily obtained by using the standard die cast aluminum miter gauge
- Fully machined, balanced disc runs vibration free
- Adjustable heavy duty cast iron removable platen
- Removable upper guard for contour finishing
- Variable position locks, belt head adjusts vertically
- Completely enclosed drums and a guarded sanding belt
- Heavy duty one piece steel stand
- JET's Industrial Belt & Disc Finishing machine will handle virtually all the finishing operations in a production line, metal or wood pattern shop, machine shop, cabinet or school shop in one compact unit. A powerful 1-1/2 HP motor provides optimal speeds of 1960 RPM for disc and 2850 RPM for belt finishing. These speeds are idea for working in metal, wood, plastics, compositions, leather and more.
- Miter gauge is standard equipment in this machine
- 60 grit belt and disc standard on machine
Technical Specifications
Type
Combination Belt and Disc Machine
Belt Size - inches
6 x 48
Belt Speed - sfpm
2850
Disc Size - inches
12
Disc speed - rpm
1960
Motor - hp
1-1/2 HP, 115V, 1Ph
Weight - lbs
250
Technical Documents
We are always wanting to provide more information! In need of a technical document? Let us know!
