JT9-577003 | 1'' x 42'' Bench Belt and Disc Sander, 1/3 HP, 115V, 1Ph
Overview
Jet 577003

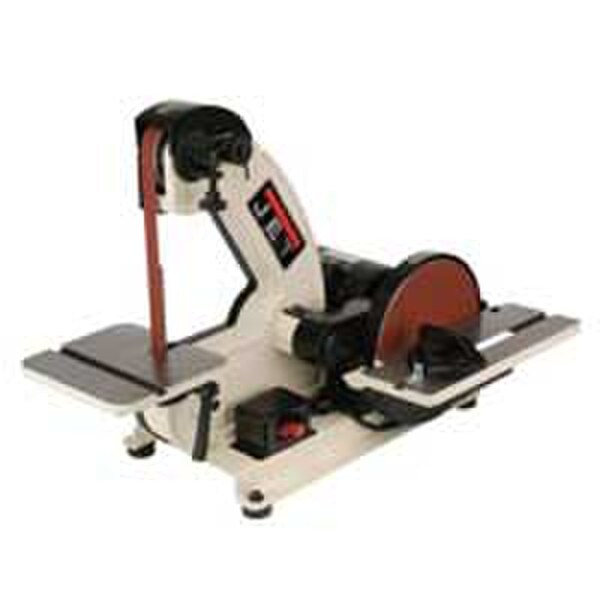

J-4002 1 X 42 Bench Belt And Disc Sander
Every shop needs a combination Sander capable of delivering premium finishes every time. The JET-J4002 is a powerful and versatile machine, preforming the work of a jig saw, coping saw or hand file removing material and creating a superior finish at the same time. Deluxe miter gauge, removable platen and cast iron construction are among the features that draw pros to this JET machine.
Features:- Hinged idler wheel cover
- Miter gauge turns and locks for common angles 45° left and right
- brasive belt unit does the work of a jig-saw, copying saw or hand file while removing material and finishing at the same time, allows the operator to get into
- small oppenings plus handle odd shapes and angles
- Removable platen allows for sanding, grinding or finishing of outside curves or odd shaped work pieces on the belt
- Grind, sand or finish large work pieces on the disc unit fast and efficiently; combined with the tilting table, the operator can chamfer or bevel, table is slotted to accept miter gauge.
- When using non-woven synthetic belts the operator can blend, buff or finish metal surfaces in addition to defuzzing wood surfaces
- Miter gauge
- Cast iron tilting table
- Cast construction
- Heavy duty steel base and rubber feet
- Removable platen
- Adjustable dust deflector and dust chute
Technical Specifications
Type
Combination Belt and Disc Machine
Belt Size - inches
1 x 42
Belt Speed - sfpm
3000
Disc Size - inches
8
Disc speed - rpm
1725
Motor - hp
1/3 HP, 115V, 1Ph
Weight - lbs
62
