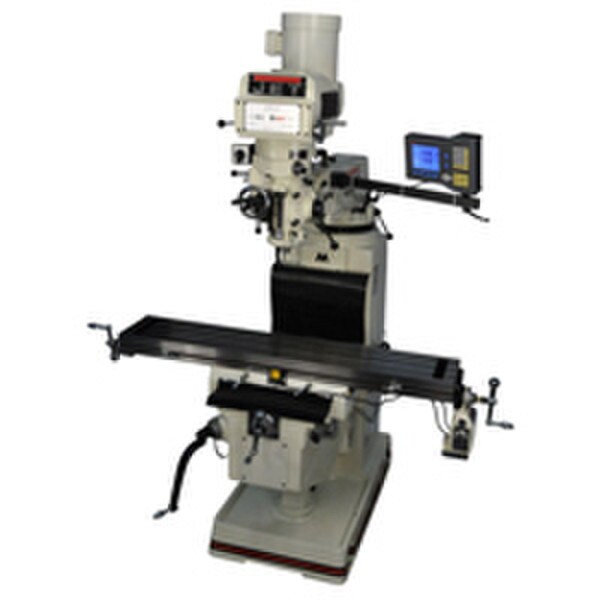

690270 | JTM-1054R Mill With ACU-RITE VUE DRO With X-Axis Powerfeed

Jet 690270

Jtm-1054R Mill With Acu-Rite Vue Dro With X-Axis Powerfeed

The JET JTM-1054R combines durability, strength and precision engineering, resulting in 10" x 54" Variable Speed Vertical Milling Machines that turn out high quality components. These heavy-duty mills are offered in both R-8 & NT-40 Spindles with all the features you've come to expect backed by the industry-leading JET Two Year Warranty

• Meehanite casting
• Hardened and ground table certified to be 52C Rockwell hardness
• Chrome leadscrews on X and Y axis
• Box style ways on Y and Z axis
• Satin chrome finished dials
• Precision bored and honed milling head
• Large diameter quill is chromed
• High precision Class 7 spindle bearings
• Chrome plated motor shaft has lower bearing support
• Motor pulleys are ground to increase belt lift
• One-piece quill pinion and shaft
• Three stage power downfeed with automatic stop
• Heavy-duty spindle brake
• Locks on all movable surfaces
• Internal coolant tank built into base for use with coolant system coolant pump not included
• One-shot lubrication system
• Way covers
• Draw bar
• Tool box with tools
