| 707110 | JMS-10SCMS, 10'' Sliding Dual Bevel Miter Saw, Green Laser
Overview
Jet 707110

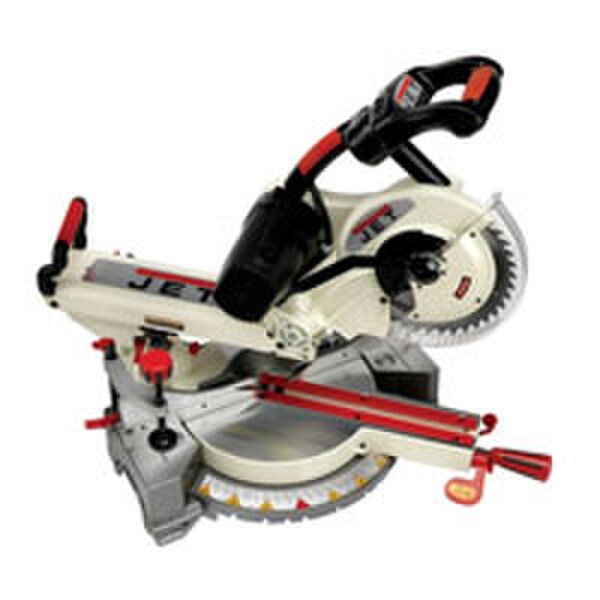

Jms-10Scms, 10" Sliding Dual Bevel Miter Saw, Green Laser
The JET B3NCH 10" dual bevel sliding compound miter saw is precise enough for all your home projects and portable enough to take with you when you need a great saw on the job. With dual bevel capacities of 0°, 33.9°, and 45° left and right, a quick cam miter lock, our Innovative Green XACTA Laser, the high performance laser system Exclusively from JET that projects an accurate, high-visibility guide line for precision cuts, even outdoors, and a powerful 15 amp, 4800 RPM motor, this saw is the right choice for any job.
Features:- Multiple rubber-grip carrying handles allow for convenient portability
- Lightweight die cast aluminum design for easy transport
- Versatile base can mount to a stand or work bench
- Heavy Duty 15 Amp motor for various cutting applications
- Die cast aluminum table for long-lasting durability
- Hold-down clamp ensures an accurate cut by stabilizing the work piece
- Oversized, ergonomic knobs provide ease of use and maximum control
- Innovative Green XACTA LaserTM provides high visibility for precision cutting
- Up front controls for safety and ease of use
- Dual bevel capability allows you to angle and stop at 0°, 33.9°, and 45° left and right
- Quick cam miter lock conveniently adjusts and stops at 10 detents: 0°, 15°, 22.5°, 31.6°, 45° left and right and 60° right
- Ergonomic, D-shaped, over-molded handle for maximum control during cutting applications
- Easy-slide fence extends further to support the work piece on both sides
Technical Specifications
Type
Dual Bevel Sliding Compound Miter Saw
Blade Diameter - inches
12
Blade Speed - rpm
4200
Arbor Diameter
5/8
Bevel Type
Dual
Cut Capacity at 45° Bevel - inches
1-5/8 x 12
Cut Capacity at 45° Compound - inches
1-5/8 x 8
Cut Capacity at 45° Miter - inches
3-5/8 x 8
Cut Capacity at 90° - inches
3-5/8 x 12
Miter Capacity - Deg
45 L, 60 R
Miter Stops
10
Amps
15
Voltage
115V
Weight - lbs
51
