708359 | JWL-1642EVS, 16'' x 42'' Lathe, 1.5HP 3PH 230V
Overview
Jet 708359
Jwl-1642Evs, 16" X 42" Lathe, 1.5Hp 3Ph 230V

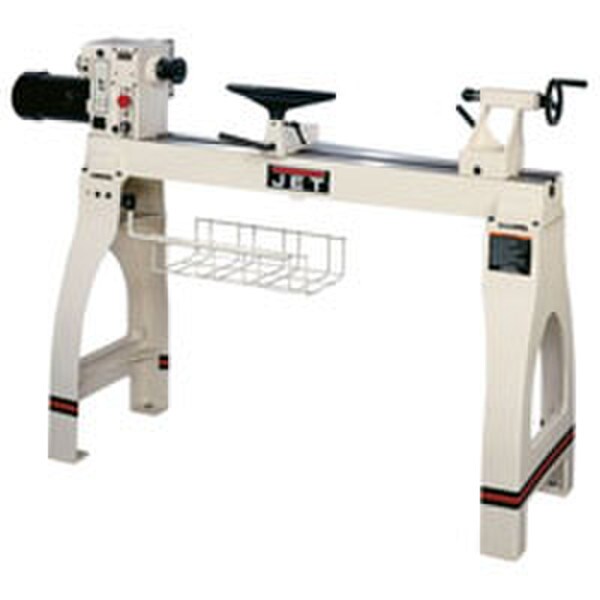

The JET JWL-1642EVS 16" x 42" EVS PRO Wood Lathe is a one of a kind machine for the true wood turner. With a 1.5 HP motor and electronic inverter, you can operate the machine at any speed from 50 to 3,200 RPM. Cam-lock mechanisms allow adjustments of headstock, tailstock and tool rest base without having to use any tools at all.
Features:- Digital readout allows operator to dial in the desired speed for best results
- Heavy-duty cast-iron lathe bed adds stability while limiting vibration during operation
- Electronic inverter lets you operate the machine at any speed from 50 to 3,200 RPM
- Sliding headstock may be positioned anywhere along the bed ways for maximum flexibility and user comfort
- High/low speed change lever quickly changes belt positions
- Spindle has positive locking indexing in 10 degree increments for fast, efficient fluting and veining operations
- Built-in spindle locks let you remove or replace faceplates and chucks with ease
- Live center has a removable pin for boring through stock
- Cam-lock mechanisms allow adjustments of headstock, tailstock and tool rest base without having to use tools
- Hollow tailstock allows you to perform long hole boring for lamps and other vessels
Technical Specifications
Type
Variable Speed Woodworking Lathe
Swing Over Bed - inches
16
Swing Over Tool Rest Base - inches
12
Distance Between Centers - inches
42
Speeds - rpm
50-1200/120-3200
Headstock Taper
MT2
Spindle Nose - inches x TPI
1-1/4 x 8
Quill Travel - inches
4
Amps
4.6
Rated Power - hp
1.5
Motor Phase
3
Voltage
230V
Motor Type
1.5hp, 3ph, 230V
Weight - lbs
440
Technical Documents
We are always wanting to provide more information! In need of a technical document? Let us know!
