JT9-708447 | OES-80CS, Oscillating Edge Sander, 1.5HP 1PH 115/230V
Overview
Jet 708447

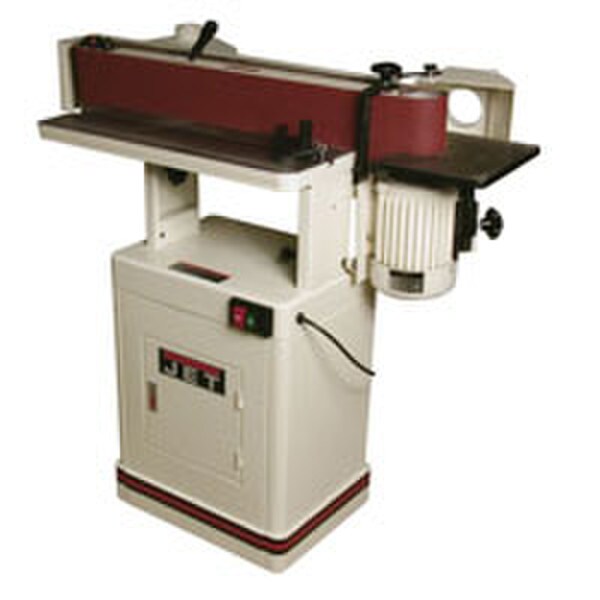

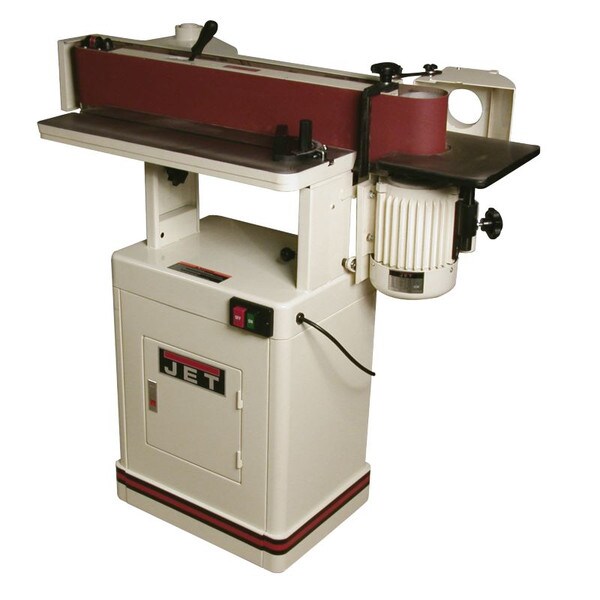

Oes-80Cs, Oscillating Edge Sander, 1.5Hp 1Ph 115/230V
The JET Oscillating Edge Sander has the accuracy and durability you need, in one exceptionally well designed machine. Edge, face, bevel, and contour sanding are at your fingertips - with the power for big jobs and control for fine work; all with the power and durability youÂ’ve come to expect from JET.
Features:- Oscillating feature reduces heat build-up on sanding belt to reduce loading and burning which increases belt life
- Quick release lever and tracking control dial are conveniently located for replacing and tracking belts
- Belt platen is made from precision-ground steel plate for strength and durability
- Graphite covered platen runs cooler increasing machine and belt life
- Cast iron table moves up or down to provide exact workpiece positioning
- 4" dust port hooks up to your dust collection system for efficient dust removal
- Adjustable outer drum support table enables contour sanding
- Tilting sanding head for sanding bevels, angles and flat surfaces
Technical Specifications
Belt Size - inches
89 x 6
Type
Horizontal/Vertical Edge Sander
Belt Speed - sfpm
3900
Oscillation Stroke - inches
1/2
Oscillations Per Minute
108
Fence Size - inches
24 x 4
Table Size - inches
32 x 7
Amps
18/9
Rated Power - hp
1.5
Motor Phase
1
Voltage
115V
Motor Type
1.5hp, 1ph, 115V
Weight - lbs
258
