JT9-708524 | JPM-13CS, 13'' Planer/Molder,1.5HP 1PH 115/230V
Overview
Jet 708524
Jpm-13Cs, 13" Planer/Molder,1.5Hp 1Ph 115/230V

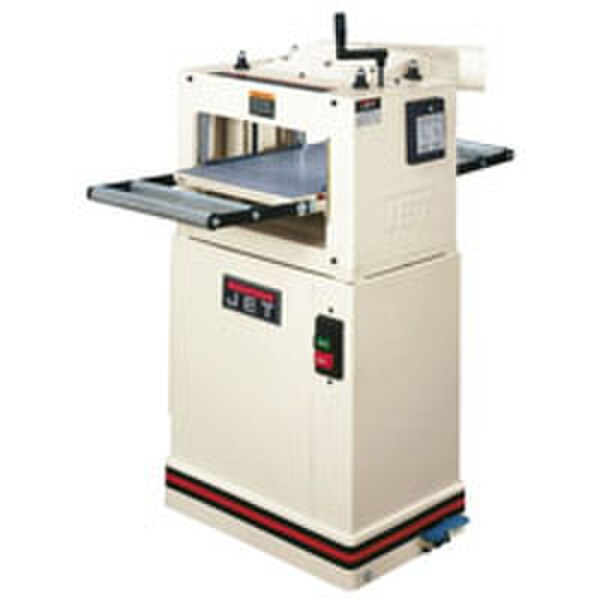

The JET JPM-13CS 13" Closed Stand Planer / Molder boasts a 1.5 HP motor. The sturdy cast iron table and base provide strength and reduce vibration during use. The Three cutter head design produces a superior finish. Built in lockable caster add support and stability to the machine while allowing it to be maneuverable.
Features:- Cast iron table and base provide strength and reduce vibration during use
- Four precision-ground column design feature adds stability when raising and lowering the table
- Three cutter head design produces a superior finish in either application
- Two speed gear box has feed rates set for optimum planing and molding results
- Molding cutter head accommodates over 40 standard molding cutter sets; most 2" or smaller heads can be installed without removing the planning knives to save you set-up time
- Infeed and outfeed rollers are adjustable and rubber-coated to support your workpiece without marring the wood
- Top-mounted height adjustment handle is easy to use for quick table height changes
- Totally enclosed fan-cooled 1-1/2HP motor uses two matched V-belts to deliver smooth, consistent power to the cutter head
- EXCLUSIVE angled 4" dust port keeps the dust hose out of the way while providing efficient chip and dust removal
- Built-in lockable casters add support and stability to machine while in use
Technical Specifications
Type
Planer/Molder
Max Planing Width - inches
13
Max Planing Thickness - inches
6-1/8
Max Full Width Depth of Cut - inches
1/16
Min Planing Length - inches
14
Cutterhead Diameter - inches
2-9/16
Cutterhead Speed - rpm
4500
Cuts Per Minute
13500
No. of Knives
3
Amps
15/7.5
Rated Power - hp
1.5
Motor Phase
1
Voltage
115/230V
Motor Type
1.5hp, 1ph, 115/230V
Weight - lbs
225
