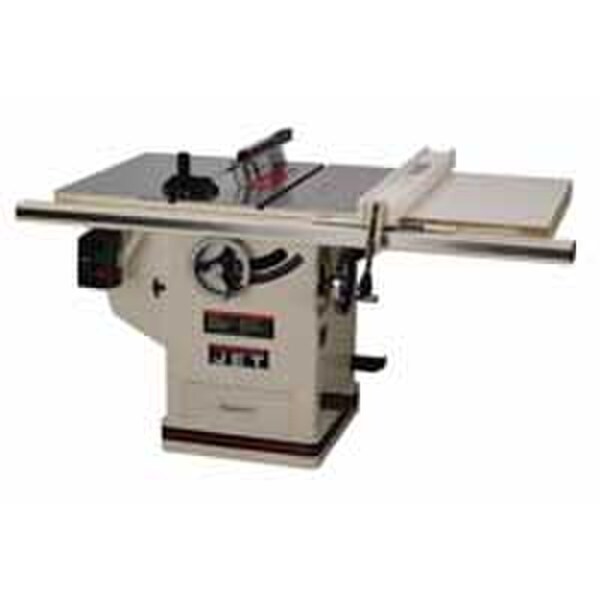

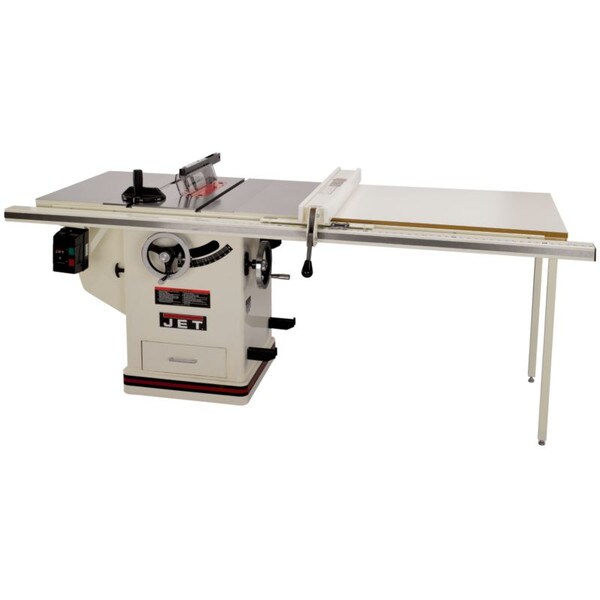

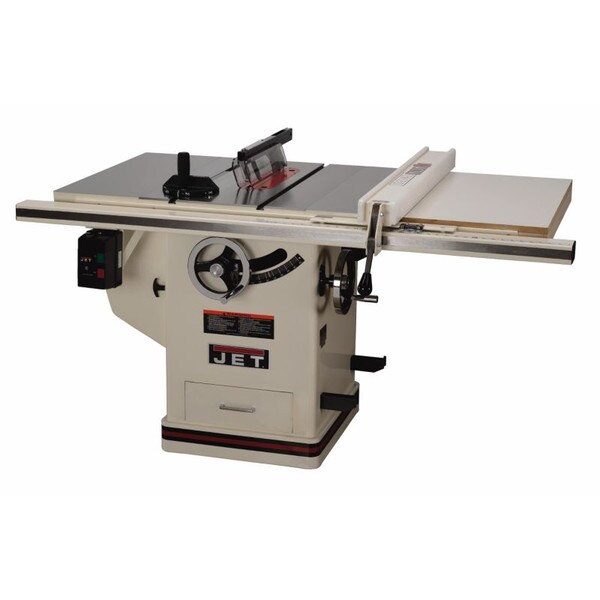

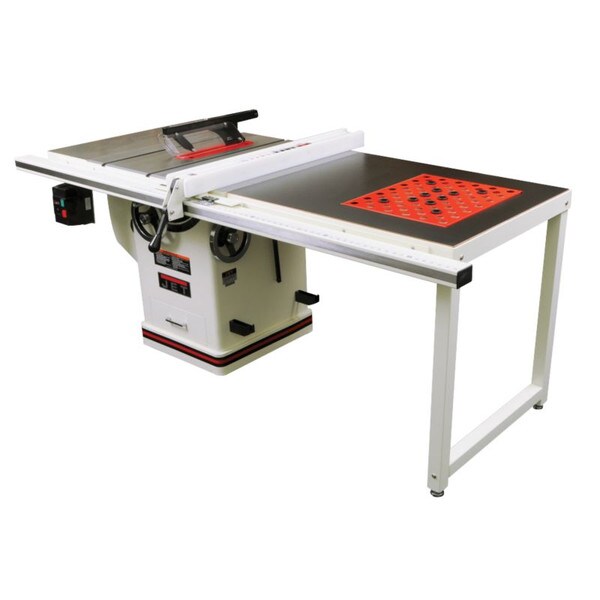

JT9-708674PK | XACTA Saw Deluxe 3HP 1Ph 230V, 30'' Fence System
Overview
Jet 708674PK
Xacta Saw Deluxe 3Hp 1Ph 230V, 30" Fence System
If you've ever wondered about what a table saw can really do, look no further. Introducing the new JET® 10" DELUXE XACTA® SAW. The Quick release riving knife and integrated arbor lock keeps the operator safe and more efficient. The DELUXE XACTA® SAW offers an upgraded Poly-V belt drive system for smooth operation and optimal power transfer, a fully shrouded blade for highly efficient dust collection. The 26" x 30" wings and deeper table gives you even more cast iron to work on. A built-in 12.5" x 18" x 4 " storage drawer sealed from the cabinet keeps your necessities within arms reach, also includes an on-board fence and miter gauge storage.
Features:- EXCLUSIVE 30" Commercial XACTA® Fence II with T-square design
- Quick release riving knife greatly reduces binding/kickback risk
- Push button arbor lock for rapid blade change
- Shrouded Blade increases dust collection efficiency
- Standard 11" left and right cast iron extension wings provides the largest table surface in its class
- Poly-V drive belt system delivers quiet, efficient operation
- Rail-mounted magnetic switch is easy to reach and provides overload protection
- Enclosed cabinet with built-in sealed storage drawer
- Hinged motor cover on cabinet gives quick access to the motor and belts
- Deluxe miter gauge with adjustable positive stops and large soft grip handles provides large crosscutting capacity and accurate miters
- Heavy-duty chrome plated handwheels contribute to smooth trunnion/arbor movement
- Built-in 4" dust collection port
- Precision ground high luster cast iron table tops with front edge bevel for hassle-free workpiece positioning
- Left tilt, Wide stance heavy-duty trunnion for stability and smooth blade positioning
- Independent leaf safety guard protects operator from blade while cutting, even at 45° tilt
- Arbor wrench
- Powder coated paint for a long-lasting, chip-resistant finish
Technical Specifications
Type
Cabinet Saw
Blade Diameter - inches
10
Arbor Diameter
5/8
Arbor Speed - rpm
4300
Max Depth of cut - inches
3
Max Dado width - inches
13/16
Max Dado Diameter - inches
8
Table height - inches
34
Weight - lbs
563
