JT9-756027 | 50'' x 16 Gauge Electric Slip Roll 1Ph, 1-1/2HP, 115/230V,
Overview
Jet 756027

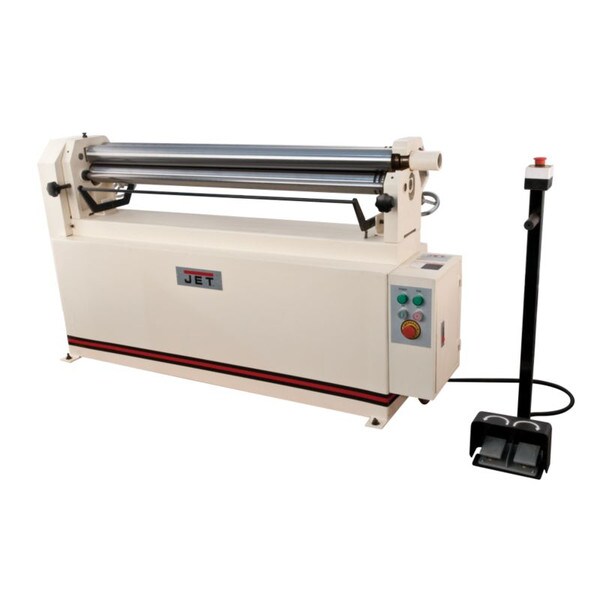

Esr-1650-1T, 50 X 16 Gauge Electric Slip Roll 1Ph
Rugged frame and base ensure that hardened polished, high-carbon steel rolls on the JET Electrical Power Slip Roll deliver smooth, even results. All electrical and rotating parts are designed to enhance operator safety and comfort during use. Easy setup and operation, this is a must-have for any HVAC or fabrication shop..
Features:- Perfect tool for sheet metal forming in HVAC and FAB-shops
- Roll drive is controlled by foot pedal for immediate forward and reverse action
- Rolls are made of hardened polished high-carbon steel.
- Forming roll has attached position scale for equal pressure adjustment
- Heavy duty cast iron frame and enclosed base insure precise sheet metal rolling.
- Easy to setup and operate
- Convenient foot-control assembly with emergency-button
- Weight and rigidity; scale and precision; strength and simplicity define exceptional comfort and ease of operation.
- All electrical and rotating parts are designed for safety and ease of use
- Satety Brake
- Large handwheels for easy adjustment
Technical Specifications
Type
Slip Roll
Gauge
16
Max Length Capacity - inches
50
Motor - hp
1-1/2HP, 115/230V,
Weight - lbs
877
Technical Documents
We are always wanting to provide more information! In need of a technical document? Let us know!
