JT9-756121 | 24'' Planishing Hammer, Pneumatic
Overview
Jet 756121

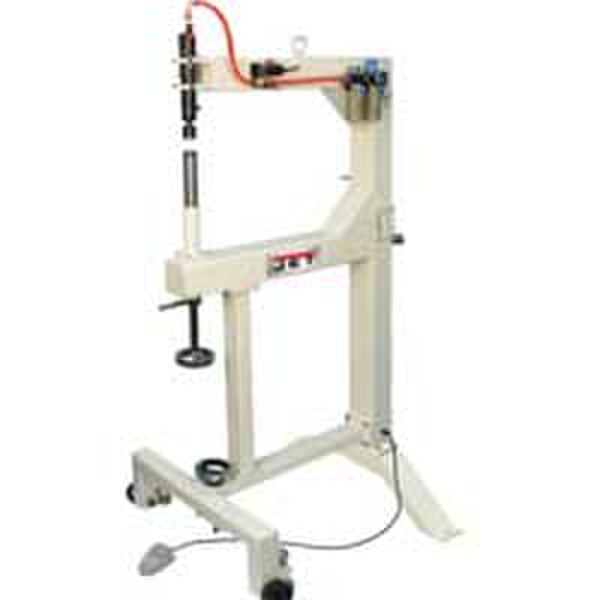

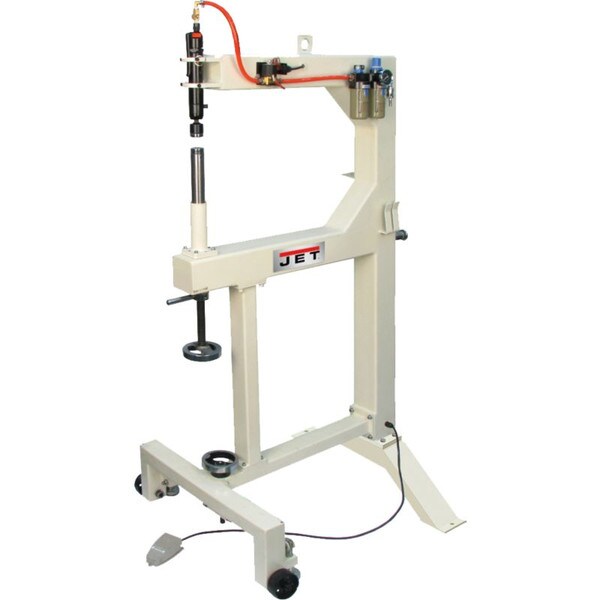

Ph-24T, 24 Planishing Hammer
JET’s 24” Planishing Hammer has a quick change set up on the upper dies and a deep throat that works to the middle of most panels. The head with 3-speed regulator is capable of 4,400 – 4,800 / 3,200 – 3,500 / 1,800 – 2,000 blows-per minute (BPM). Easy to-reach, adjustable flow control valve allows the user to deliver the proper BPM needed for any job. Operates on standard shop air.
Features:- Smooths beads and forms mild steel sheet metal up to 16 Gauge
- Smooths beads and forms aluminum and copper up to 1/8 in. thick
- Machine supplied with a pair of upper and anvil dies
- 3-Position airflow regulates speeds of pneumatic hammer
- Machine controlled with 110V AC foot control
- 2-Die Set Brackets
- Quick change of upper dies
- Retractable handle makes machine easy to move around the shop
- Wider base support to prevent movement of machine while in use
Technical Specifications
Type
Planishing Hammer
Gauge
16
Max Length Capacity - inches
24
Motor - hp
Pneumatic
Weight - lbs
258
