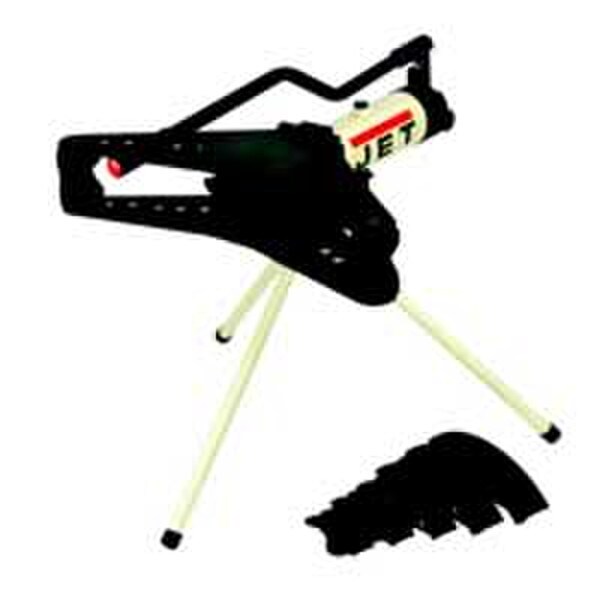

Jet JHPB Manual Hydraulic Pipe Benders

JET Manual Hydraulic Pipe Benders are the bender of choice among fabricators who need a hydraulically powered, easy to use bending machine for general fabrication work, whether on the job or at home. Since no external power is needed to operate, it is ideal for use on the job site.

• Simple manual operation for ease of use
• Six bending dies included standard (1/2", 3/4", 1", 1-1/4", 1-1/2", 2")
• Rotating stand locks in three positions for stability and versatility
• Heavy-duty hydraulic cylinder capable of bending schedule 40 pipe
• Completely manual so external power is not needed
• The inside radius our pipe benders will produce on all the different size pipes with the 90 degree bend
• Pipe Size................Inside Radius
• 1/2"...........................75mm
• 3/4"...........................94.5mm
• 1".............................118mm
• 1-1/4".......................149mm
• 1-1/2".......................169mm
• 2".............................212mm
• 2-1/2".......................262.25mm
• 3"............................313.75mm
