KBL04FR | Kolver KBL04FR Electric Screwdriver, 0.4 - 3.5 in lbs, 700 - 1150rpm

(0)No Reviews yet
$680.39
$785
$104.61000000000001
Warning: California Proposition 65 | Trade Regulations Advisory Notice
Item Ships free
Order total must be over $999.99, under 20 lbs and shipping within continental USA

Get your tool under our Flex Warranty!

We will fix it or replace it.

FLEX Warranty keeps your tools safe when manufacturer warranties come up short. Bad luck deserves good coverage.

*Manufacturer warranty only cover you for so long. FLEX Warranty extends and enhances your coverage for up to two years.

Non-Returnable
Spare Parts, Specialty and Custom items are non-returnable and non-refundable
Back

Overview

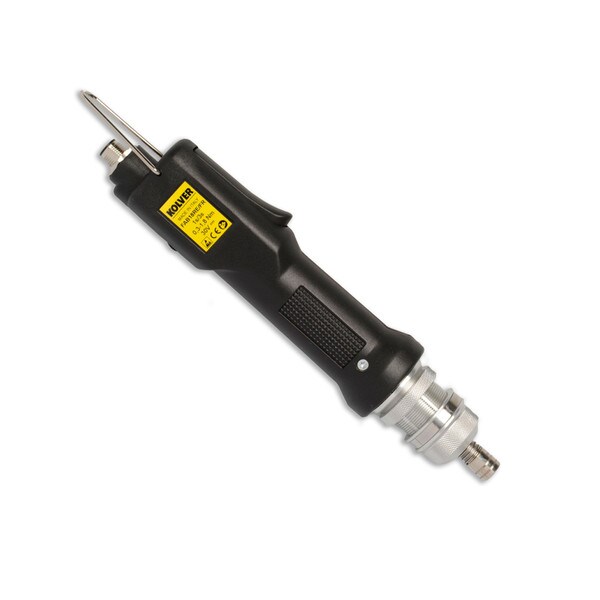

Introducing the Kolver KBL04FR Electric Screwdriver, a remarkable assembly tool that combines precision, power, and efficiency in a compact and user-friendly design. Engineered by Kolver, this electric screwdriver is the epitome of innovation, delivering exceptional performance for a wide range of fastening applications.

  • Min Torque(In Lb): 0.4
  • Max Torque(In Lb): 3.5
  • Speed Range(RPM): 700 - 1150
  • Drive Size: 1/4'' hex
  • Free Speed(RPM): 650 - 1000
  • Start Type: Magnetic

Controller/Power Supply EDU1BL sold separately.

Back

Features & Benefits

  • State-of-the-Art Brushless Motor: Equipped with an advanced brushless motor, the KBL04FR offers superior performance, increased durability, and reduced maintenance needs compared to traditional brushed motors. Say goodbye to carbon dust and other pollutants, ensuring a cleaner and safer work environ
  • Precise Torque Control: With a torque range of 0.4 to 3.5 in lbs, the KBL04FR provides exceptional precision for delicate fastening tasks. Its advanced clutch mechanism guarantees an accuracy of ±7% or better, ensuring consistent and reliable results.
  • Versatile Inline Configuration: The inline configuration of the KBL04FR makes it ideal for various assembly applications, including those in tight spaces or on production lines. Its 2.5m connection cable and suspension bail provide added convenience and flexibility.
  • Enhanced Safety and Ergonomics: Designed with operator comfort and safety in mind, the KBL04FR features an ergonomically advanced ESD-safe body, minimizing user fatigue and the risk of electrostatic discharge. Its lightweight and compact construction allows for effortless handling, even during exten
Back

Technical Specifications

Min Torque - In Lbs
0.4
Max Torque - In Lbs
3.5
Min Torque - Nm
0.04
Max Torque - Nm
0.4
Start Type
Lever Start
Clutch Type
Auto Shut Off
Style
Inline
Drive Size
1/4'' hex
Free Speed - rpm
1000
Length - Inches
10
Type
Electric Screwdriver
Output
1/4 in. Hex
Power supply
EDU1BL
Back

Technical Documents

We are always wanting to provide more information! In need of a technical document? Let us know!

Back

Frequently Asked Questions

What is the torque range of the KBL04FR?

The KBL04FR has a torque range from 0.4 to 3.5 in lbs (0.04 - 0.4 Nm).

Did you know that the average max torque range of an Electric Screwdriver can range from 3 - 5 Nm or 27 - 45 in lbs?

Electric Screwdrivers like the KBL04FR, are most commonly used for medium to heavy assembly applications where precise torque control is required. The KBL04FR is an Inline model with a Auto Shut Off clutch.
There is a mechanical adjustment on the tool but you will require a digital torque tester with a run down adapter (joint simulator) to validate the output torque of the tool. Please click here for a link to our selection of torque testers.
Most manufacturers have a one year warranty, free from defects. However, the Flex Warranty offers two more additional years of coverage.
