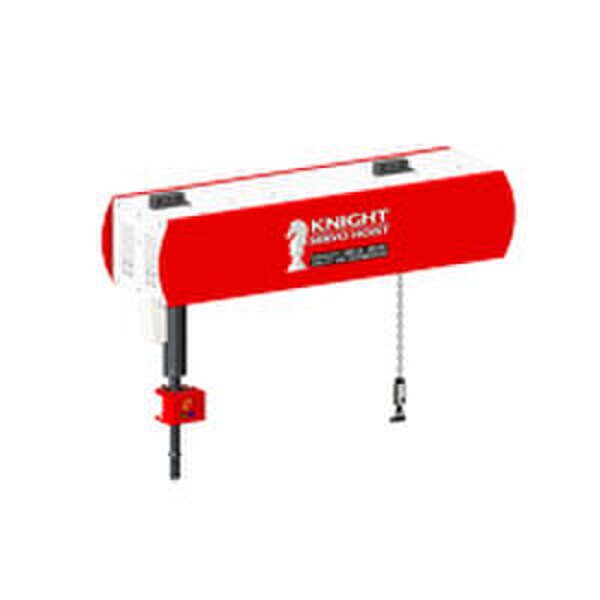

Knight KSHTC Series Servo Hoists

Knight Global's KSHTC Twin Chain Servo Hoist Series is an Intelligent Assist Device (IAD) that enables an operator to precisely locate or float a load in the "Z" direction (vertical axis) with speed, precision, quality and unmatched reliability. Knight's Twin Chain design helps to control and balance unwieldy or long parts. The (2) two Twin Chains are mechanically linked together so they operate as one unit. The KSHTC Servo Hoist allows for many application solutions due to its various programmability features. It enables an operator to simply grasp the handle and move the load, eliminating push buttons. Traditional hoists require the operator to push buttons in order to initiate a natural ergonomic motion.

Knight's Servo Hoist technology becomes an extension of an operator's natural movements and greatly improves accuracy, responsiveness and repeatability; which increases overall safety, productivity and quality. The inherent benefits include: eliminating wasted motions, reduced reaction times, and minimal effects of inertia with heavy loads.

Mechanical Features:
• Speeds: Up to 196 ft. per min. [60mpm].
• Maximum Lifting Capacity:
• Up to 700 lbs. [317.5kg].
• Standard Chain Center Point Distances.
• 24 in. [609mm] - 36 in. [914mm]. Widths over 36 in. are custom.
• Safety Rating of 125%.
• Fail Safe Brake.
• Knight's Patented Chain, for longer life.
• Chain Length, Unlimited (18 ft. Standard).
• Sealed Worm Style Gearbox.
• H5 Rated (Continuous Duty Cycle).

Software Features:
• Programming and Diagnostic
• Communication Ports.
• Virtual Travel Limits.
• Speed Reduction Zones.
• Impact Limiting.
• Active Dampening.
• Standard Float Mode.
• Programmable Overload Capability.
