Knight KSHVA Series Servo Hoists

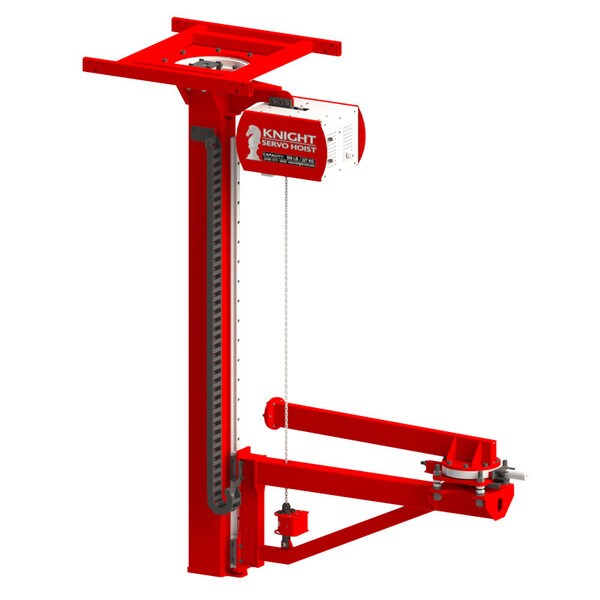

Knight Global's KSHVA Series Overhead Carriage Mounted Vertical Servo Hoist Arm is an Intelligent Assist Device (IAD) that assists and enables an operator to reach underneath and overhead work areas with minimal effects of inertia with heavy loads in a confined work cell; while precisely locating or floating that load in the "Z" direction (vertical axis) with speed, precision, quality and unmatched reliability. The KSHVA Series Servo Arm creates a stable lifting platform, eliminating the yarding and swinging of chain or cable.

Knight's Servo Hoist technology becomes an extension of an operator's natural movements and greatly improves accuracy, responsiveness and repeatability; which increases overall safety, productivity and quality. The inherent benefits include: eliminating wasted motions, reduced reaction times, and minimal effects of inertia with heavy loads.

Mechanical Features:
• Speeds: Up to 196 ft. per min. [60mpm].
• Maximum Lifting Capacity:
• Up to 1,000 lbs. [453kg].
• Safety Rating of 125%.
• Overhead Carriage Mounted.
• Fail Safe Brake.
• Knight's Patented Chain, for longer life.
• Chain Length, Unlimited (18 ft. Standard).
• Sealed Worm Style Gearbox.
• H5 Rated (Continuous Duty Cycle).

Software Features:
• Programming and Diagnostic
• Communication Ports.
• Virtual Travel Limits.
• Speed Reduction Zones.
• Impact Limiting.
• Active Dampening.
• Standard Float Mode.
• Programmable Overload Capability.
