130203/TA/LED | PLUTO3D/TA/LED | 3 Nm 1/4'' hex torque angle screwdriver, 1300 rpm

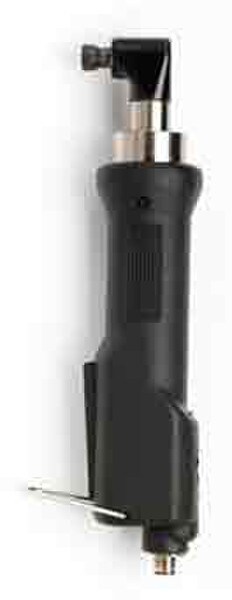

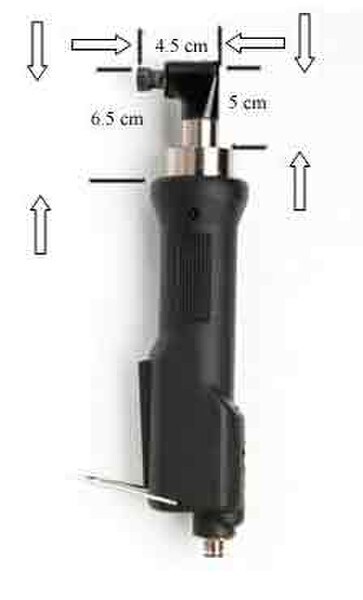

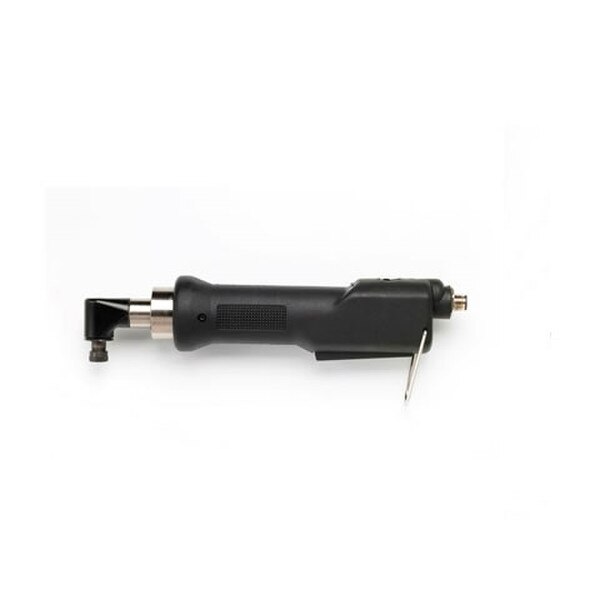

Kolver PLUTO3D/TA/LED

3 Nm 1/4" hex torque angle screwdriver, 1300 rpm

Industrial tightening may require different control strategies and solutions. The most common cases are: torque control with angle monitoring and angle control with torque monitoring. Kolver Multi- Torque Torque & Angle controllers can manage all such strategies, with up to 8 individual P-sets.

The main parameters to be controlled are the tightening torque and the rotation angle of the screw, either with torque or angle priority. The motor stops automatically when the pre-set angle and torque value have been reached and an indication of OK cycle (green led turned on) is given, otherwise a red led turns on if the tightened screw doesn’t match the pre-set parameters. The final torque and angle values are also displayed.
