EDU2AE/ACE | programmable, EDU2AE with ACE screwcounting device attached

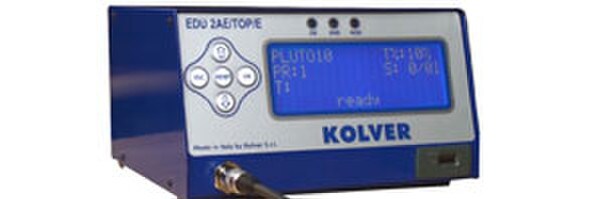

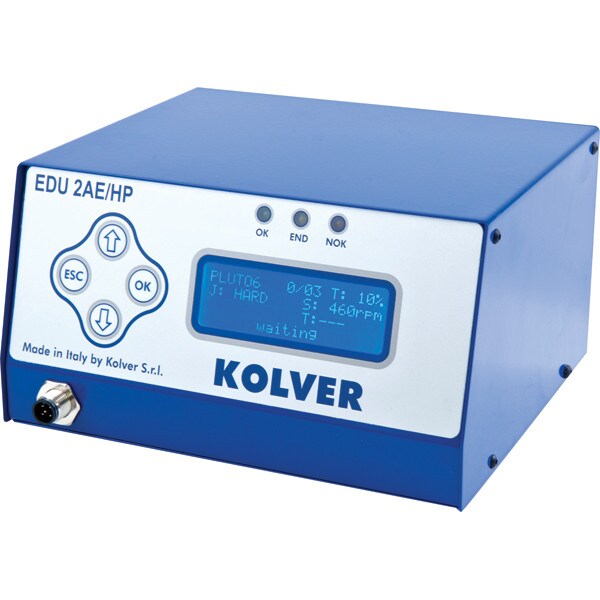

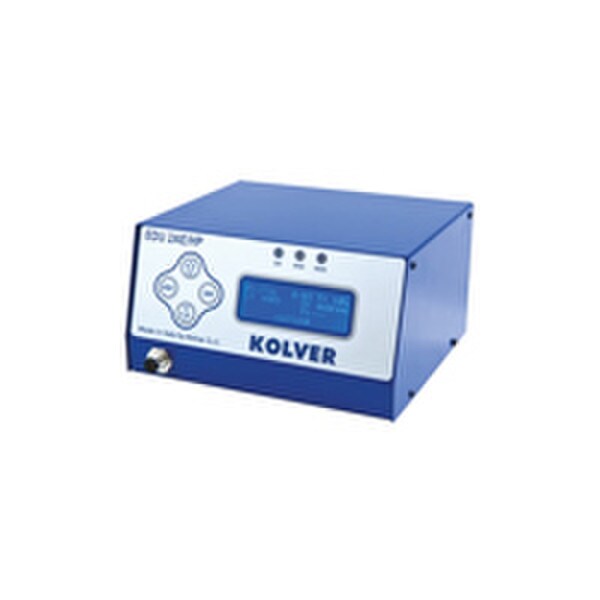

Kolver EDU2AE/ACE

programmable, EDU2AE with ACE screwcounting device attached

All Kolver screwdrivers work in combination with a control unit acting as an AC to DC transformer and torque controller. The electronic control circuit cuts the power supply to the motor as soon as the pre-set torque has been reached. For the Pluto Series, the EDU2AE Series Controllers give you all the advantages of precision torque controlled electric tools at a fraction of the price of transducerized tools. Our microprocessor based unit cuts the power to the motor calculating the precise torque level in response to 3 parameters; voltage, frequency, and current.

• One controller to handle torque from 2.6 to 308 in/lbs.
• Hard or Soft joint setting; Slow start or Soft stop setting.
• Adjustable rundown speed.
• Min time – Max time target setting.
• Auto reverse, with adjustable speed, and adjustable torque settings.
• Programming in four languages available.
• Lever start and torque reached signal outputs, remote start and reverse contacts.
