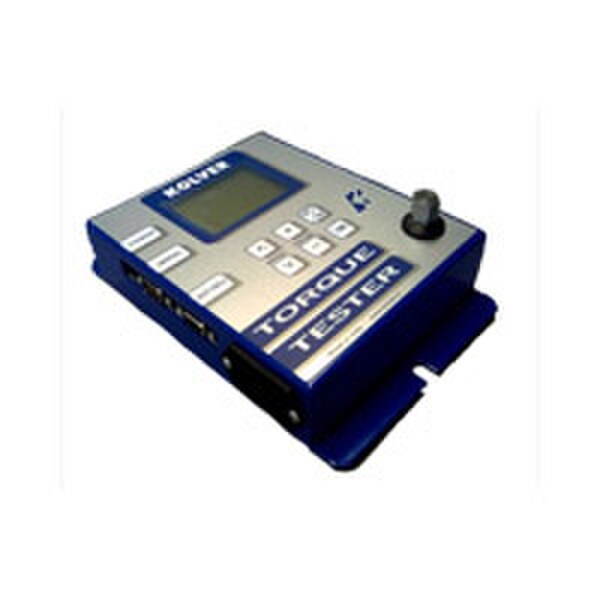

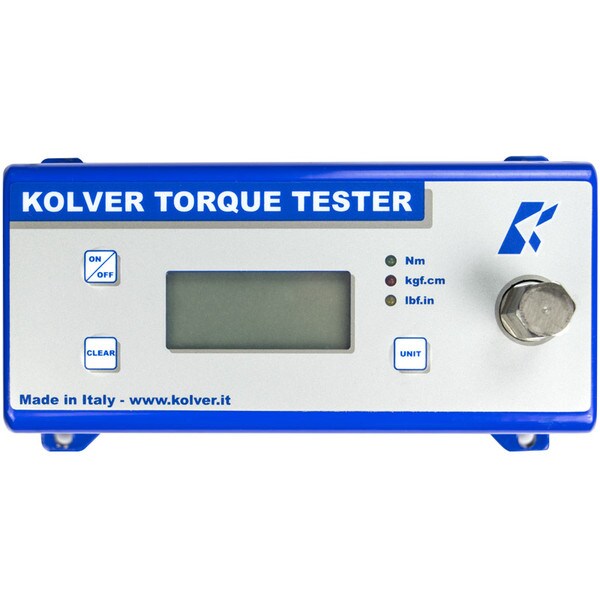

Kolver K Series Torque Testers

The K Series takes the best parts of the K series torque tests and packages them in a compact, low cost unit. The K1 comes equipped with an AC adapter.

The K Series features a built-in transducer. Using high performance circuitry, it displays torque values in three different units. Priced at a low cost, the tester has become very popular among those companies wishing to improve their product quality through the precise control of torque.

The Mini K Series includes the rundown kit which is composed of mini belleville washers for easy customization for joint stiffness.

Features:
• User friendly menu
• Accuracy: +/- 0.5% of the indicated value +/-1 digit
• Internal transducer for tests on a joint simulator (supplied with the unit)
• Connection for external transducer (transducer not included)
• 500 joints memory
• Selection among Nm, Ncm, kg/cm, and in/lbs
• RS232C output (cable not included)
• Indication <=> of the preset values
• Output signal at preset reached value
• Clockwise and counter-clockwise measurement
• 3 modes of operation: Peak +, Peak -, Track
• Manual or automatic reset
• 9 V rechargeable battery provides 4 hours continuous operation - automatic switch-off to reduce battery consumption
• 125% transducer overload protection

Included with the K series
• Plastic carrying case
• One rechargeable battery
• One joint simulator (semi-elastic)
• Instruction manual and certificate of calibration.

NOTE: Additional joint simulators (rundown adapters) for hard joint or fully elastic joint available on request.
