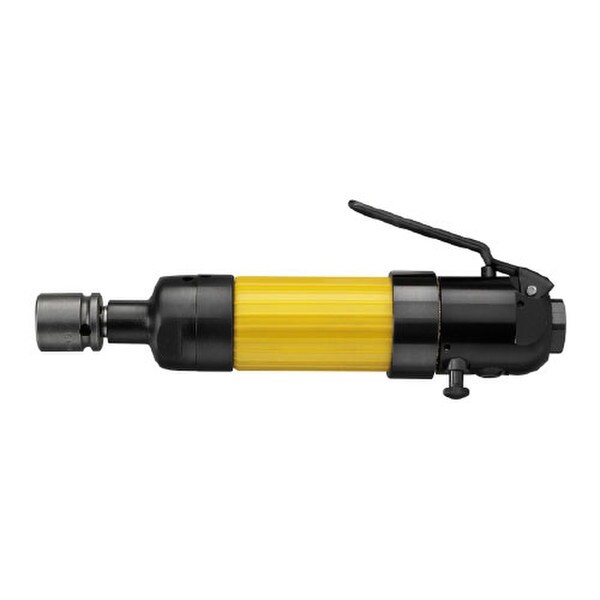

8434 1081 11 | LMS08 SR10 | Inline Impact Wrench, 7 - 65 Nm, 12500 rpm, 3/8'' square

(0)No Reviews yet

Designed to provide dependability and a long, trouble-free service life in the toughest conditions. The LMS is a non shut-off impact wrench with extraordinary power to weight qualities and virtually no reaction force during tightening, typically used where fast tightening or disassembly is needed.

Warning: California Proposition 65 | Trade Regulations Advisory Notice
Item Ships free
Order total must be over $999.99, under 20 lbs and shipping within continental USA

Get your tool under our Flex Warranty!

We will fix it or replace it.

FLEX Warranty keeps your tools safe when manufacturer warranties come up short. Bad luck deserves good coverage.

*Manufacturer warranty only cover you for so long. FLEX Warranty extends and enhances your coverage for up to two years.

Non-Returnable
Spare Parts, Specialty and Custom items are non-returnable and non-refundable
Back

Overview

Atlas Copco 8434 1081 11

Straight, Non-Shut Off, Impact Wrench, 5-33 Ft Lb


Atlas Copco impact wrenches are designed to provide dependability and a long, trouble-free service life in the toughest conditions. Few other tools can match the Atlas Copco impact wrench when it comes to flexibility, capacity-to-weight ratio and simplicity in use and maintenance. The LMS models are non shut-off, which means they will shut off once the operator releases the trigger.

Features:
  • Fast tightening and disassembly
  • Negligible reaction force
  • Low weight
  • High power-to-weight ratio
  • Tightening time should not exceed 5 seconds, to avoid excess wear on the tool
  • Soft-start throttle
  • GRS, Grease Retaining System
Back

Features & Benefits

  • Extremely fast tightening and loosening
  • Longer service life
  • Greater operator comfort
  • Reduced risk of vibration related injuries
Back

Technical Specifications

Model
LMS08 SR10
Recommended Torque Range (Ft Lb)
5-33
Drive size
3/8'' square
Manufacturer
Atlas Copco
Length (mm)
184
Min Torque (Ft Lb)
5
Max Air Consumption (cfm)
9.1
Free Speed (RPM)
12500
SKU
8434 1081 11
Stock Code
3
Air Inlet
1/4 in.
Style
Inline
Clutch Type
Non Shut Off
Max Torque (Ft Lb)
48
Min Torque (Nm)
7
Max Torque (Nm)
65
Bolt Size - mm
6-8
Impacts Per Minute
1650
Max Free Speed (rpm)
12500
Weight (lbs)
1.9
Blows Per Minute (bpm)
1650
Actuation
Lever
Series
LMS
Retainer Type
Pin
Min Hose Size (mm)
6.3
