8434 1480 00 | LMS48 HR20 | Impact Wrench, 100 - 550 Nm, 6500 rpm, 3/4'' square

(0)No Reviews yet

Designed to provide dependability and a long, trouble-free service life in the toughest conditions. The LMS is a non shut-off impact wrench with extraordinary power to weight qualities and virtually no reaction force during tightening, typically used where fast tightening or disassembly is needed.

Warning: California Proposition 65 | Trade Regulations Advisory Notice
Item Ships free
Order total must be over $999.99, under 20 lbs and shipping within continental USA

Get your tool under our Flex Warranty!

We will fix it or replace it.

FLEX Warranty keeps your tools safe when manufacturer warranties come up short. Bad luck deserves good coverage.

*Manufacturer warranty only cover you for so long. FLEX Warranty extends and enhances your coverage for up to two years.

Non-Returnable
Spare Parts, Specialty and Custom items are non-returnable and non-refundable
Back

Overview

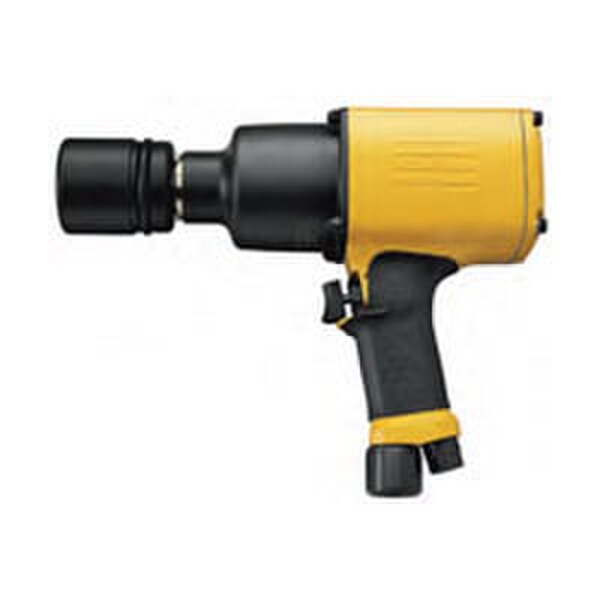

Atlas Copco 8434 1480 00

Pistol Grip, Non-Shut Off, Impact Wrench, 74-405 Ft Lb


Atlas Copco impact wrenches are designed to provide dependability and a long, trouble-free service life in the toughest conditions. Few other tools can match the Atlas Copco impact wrench when it comes to flexibility, capacity-to-weight ratio and simplicity in use and maintenance. The LMS models are non shut-off, which means they will shut off once the operator releases the trigger.

Features:
  • Fast tightening and disassembly
  • Negligible reaction force
  • Low weight
  • High power-to-weight ratio
  • Tightening time should not exceed 5 seconds, to avoid excess wear on the tool
  • Soft-start throttle
  • GRS, Grease Retaining System
Back

Features & Benefits

  • Extremely fast tightening and loosening
  • Longer service life
  • Greater operator comfort
  • Reduced risk of vibration related injuries
Back

Technical Specifications

Model
LMS48 HR20
Recommended Torque Range (Ft Lb)
74-405
Drive size
3/4'' square
Manufacturer
Atlas Copco
Length (mm)
173
Min Torque (Ft Lb)
74
Max Air Consumption (cfm)
25.2
Free Speed (RPM)
6500
SKU
8434 1480 00
Stock Code
3
Air Inlet
3/8 in.
Style
Pistol Grip
Clutch Type
Non Shut Off
Max Torque (Ft Lb)
1014
Min Torque (Nm)
100
Max Torque (Nm)
1375
Bolt Size - mm
16-18
Impacts Per Minute
1100
Max Free Speed (rpm)
6500
Weight (lbs)
7.3
Blows Per Minute (bpm)
1100
Actuation
Trigger
Series
LMS
Retainer Type
Thru-hole
Min Hose Size (mm)
12.5
