LR Mate 200iC/5L | 6 axes robot with 892mm reach
Overview

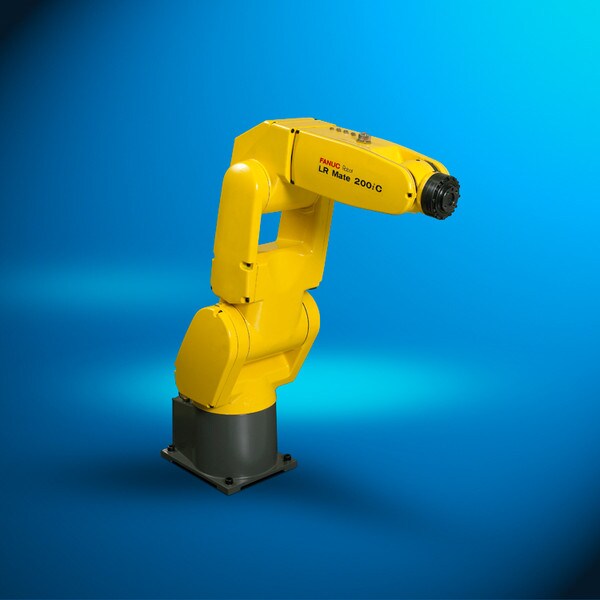

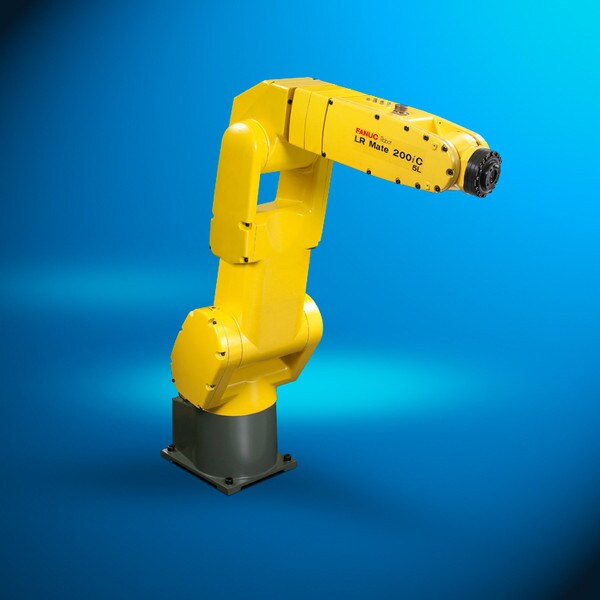

FANUC Robotics LR Mate 200iC/5L
6 Axes Robot With 892Mm Reach (Long Arm)
The LR Mate Robot series offers the smallest models within the FANUC Robot range, with up to 5kg payload. Those Robots are ideal for fast and precise applications in all environments. They run on the R-30iA Mate compact controller, which requires minimum space.
INTEGRATED END EFFECTOR SERVICES
- Pneumatic and electric cabling to the valves placed near the flange, increasing system reliabilityÂ
- Two standard integrated double acting air solenoids (3rd valve available as option)
FLOOR, CEILING, ANGLE AND WALL MOUNT POSSIBLE
- Robot can be mounted on the floor and on the ceiling without any restrictions, angle and wall mounting possible (with restriction)
- Better use of space within envelope
VERY HIGH THROUGHPUT LR Mate 200iC
The LR Mate 200iC brings:
- Calculated TCP speed of more than 4 meters/sec
SEALED MECHANICAL UNITS
- Robot can be mounted inside the machine tool
- Reduced installation costs
"SEVERE DUST LIQUID PROTECTION (SDLP)” WITH COMPLETE IP67 AS STANDARD
Robot entirely IP 67: Dustproof and can be immersed in water
COMPACT ROBOT DESIGN
- Easy to integrate into a work cell
- Reduced floor spaceÂ
- Less interference area
- Reduced investment
SMALL COMPACT CONTROLLER
R-30iA Mate as standard
LR Mate 200iC/5H: COST-EFFECTIVE 5-AXES UNIT
The LR Mate 200iC/5H offers a cost-effective solution for every application where axis J4 of the LR Mate 200iC is not necessary.

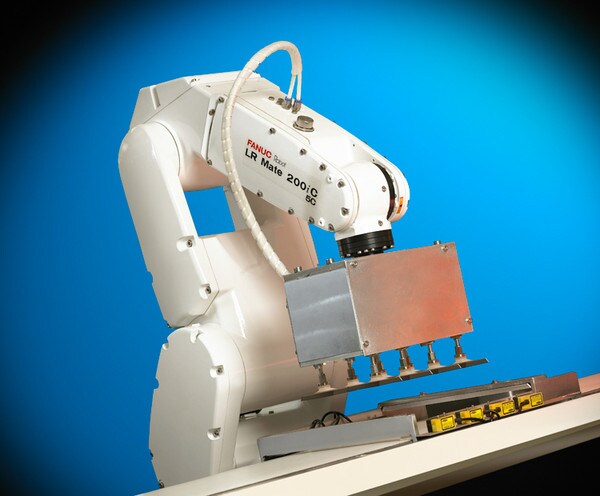

LR Mate 200iC/5C AND LR Mate 200iC/5LC: CLEANROOM VERSION
- Special treatments for cleanroom (color, covers, bolts, seals, etc)
- Changing solenoid valves and air joints to cleanroom typeÂ
- Exhaust port for solenoid valves on J1 baseÂ
- Features cleanroom class 100
MOTORS DIRECTLY COUPLED TO THE REDUCER
- Simplified mechanical unitÂ
- Reduced breakdown riskÂ
- Compact and reliable solutionÂ
- High accuracy and minimum backlash
FLIP OVER CAPABILITY
- Reduces cycle time
- Allows more flexible cell designs
- Allows several robots to work together
in close proximity - Full working envelope when robot
mounted upside down - No interference with robot itself
Technical Documents
Data Sheet (PDF)We are always wanting to provide more information! In need of a technical document? Let us know!
