Overview

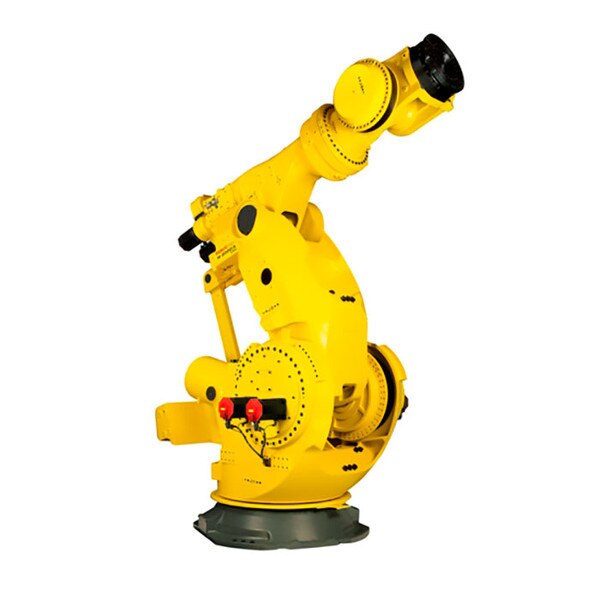

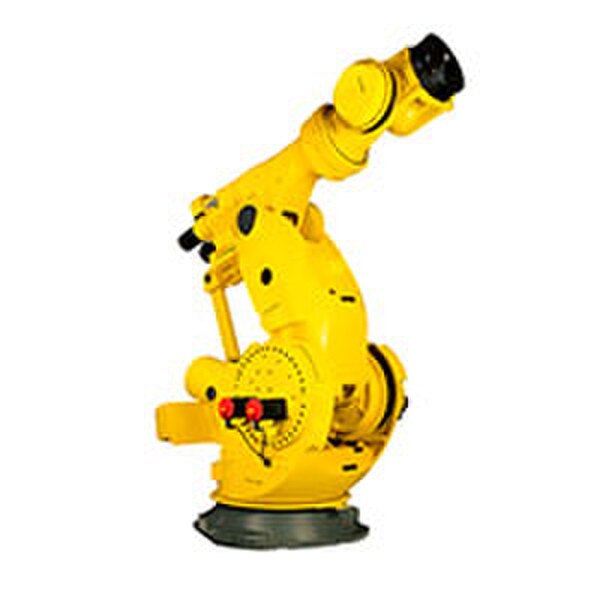

FANUC M-2000iA/2300

6 Axis, 2300 kg Heavy Payload Robot, 3734 mm reach

The M-2000iA is a super heavy payload robot, models can range in payload capacity between 900 - 2300 kg.

Features:
  • Wrist can be used safely in adverse environments becasue it has IP67-equivelent resistance to environmental conditions (dust and liquids)
  • Latest intelligent functions with iRVision (Integrated Vision) are available.
Back

Features & Benefits

  • Able to easily lift and position an entire car or load bulky set castings onto machine fixtures.
  • The M-2000iA/2300’s super-strong IP67 protected wrist, means it’s capable of lifting and holding an entire car from the side.
  • Enhanced lifting capacity makes it great way of adding flexibility to your heavy material handling operations.
Back

Technical Specifications

Application
Assembly, Pick/Pack/Palletizing, Material Removal, Spot Welding, Part Transfer, Dispensing
Model
M-2000iA/2300
Manufacturer
FANUC
SKU
M-2000iA/2300
Reach
3734 mm
Installation
Floor
No. of Axis
6
Repeatability
0.3mm
Payload
2300 kg
Weight (kg)
11000
