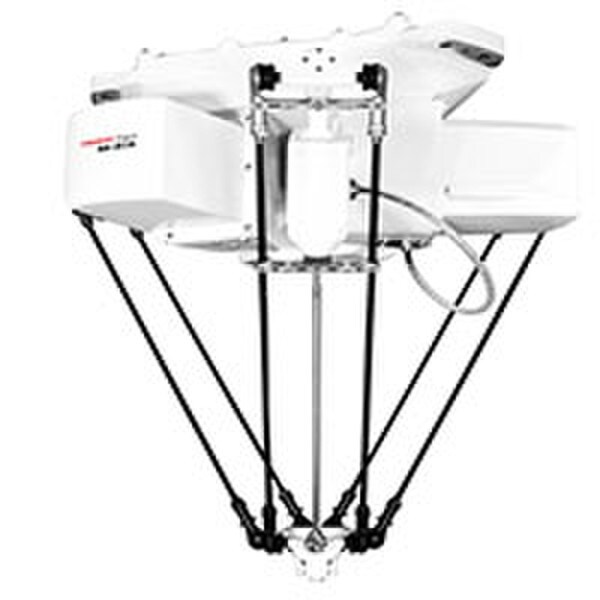

M-2iA/6H | 3 Axis, 6 kg Compact High-Speed Picking and Assembly Robot, 800 mm reach

(0)No Reviews yet

Offering maximum cable protection thanks to its hollow wrist, this 3-axis delta robot is not only ideally suited to wet environments but offers greater flexibility with its extensive work envelope

Warning: California Proposition 65 | Trade Regulations Advisory Notice
Item Ships free
Order total must be over $999.99, under 20 lbs and shipping within continental USA

Get your tool under our Flex Warranty!

We will fix it or replace it.

FLEX Warranty keeps your tools safe when manufacturer warranties come up short. Bad luck deserves good coverage.

*Manufacturer warranty only cover you for so long. FLEX Warranty extends and enhances your coverage for up to two years.

Non-Returnable
Spare Parts, Specialty and Custom items are non-returnable and non-refundable
Back

Overview

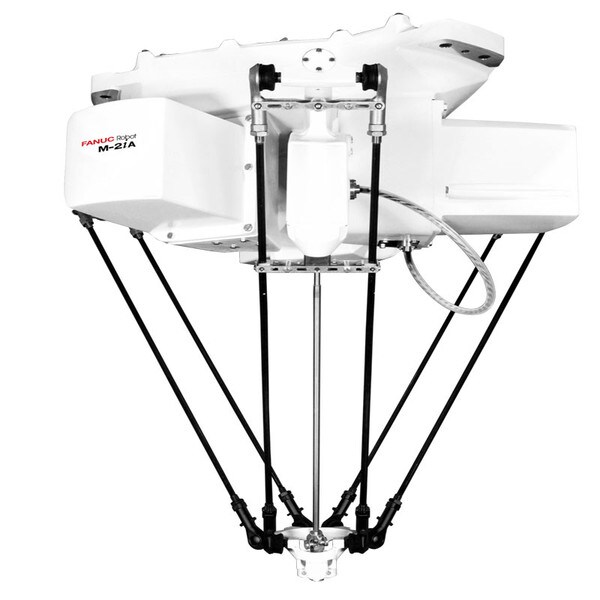

FANUC M-2iA/6H

3 Axis, 6 kg Compact High-Speed Picking and Assembly Robot, 800 mm reach

Genkotsu-Robot 2 High-Speed Picking and Assembly Robot

The M-2iA robot is a high-speed picking and assembly robot.

Features:
  • Able to withstand high-pressure steam cleaning - IP69K rating
  • Food adaptation option is available with a high-quality surface treatment and food-grade lubricant; making it ideal for handling food and beverage products.
  • Ready to be equipped with the latest intelligent features including FANUC iRVision (Integrated Vision) and force sensing.
Back

Features & Benefits

  • Capable of high speed operation, it makes a good choice for picking and packing processes.
Back

Technical Specifications

Application
Assembly, Pick/Pack/Palletizing, Part Transfer, Dispensing, Material Removal
Model
M-2iA/6H
Type
Parallel Link Mechanism
Manufacturer
FANUC
SKU
M-2iA/6H
Reach
800 mm
Installation
Ceiling
No. of Axis
3
Repeatability
0.10 mm
Payload
6 kg
Weight (kg)
125
