M-710iC/50H | 5 Axis, 50 kg Medium Payload Robot, 2000 mm reach With Controller
Overview

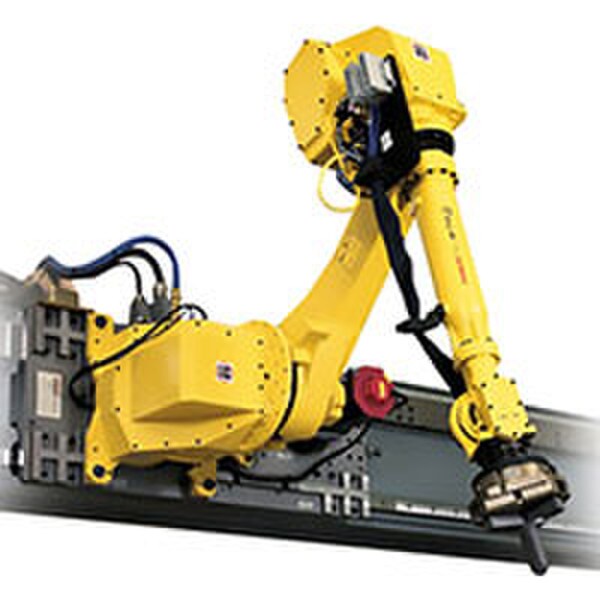

FANUC M-710iC/50H
5 Axis, 50 kg Medium Payload Robot, 2000 mm reach With Controller
The FANUC M-710iC is a medium payload robot with a wrist payload that can range between 12 - 70 kg.
The full cover of the M-710iC provides IP67-equivelent resistance to environmental conditions (dust and liquid).
The M-710iC is reliable for various applications, such as loading/unloading machined partsm de-burring and die cast loading.
Features & Benefits
- Ideal for packing and palletizing applications due to it's high axis speed.
- Best payload and inertia in its class
- IP67 wrist protection as standard
- Ideally suited for medium payloads. High allowable inertias are ideal for handling large workpieces such as glass panes and steel panels.
Technical Specifications
Application
Assembly, Spot Welding, Load Transfer, Dispensing, Arc Welding, Pick/Pack/Palletizing, Material Removal
Model
M-710iC/50H
Manufacturer
FANUC
SKU
M-710iC/50H
Reach
2003 mm
Installation
Floor, upside-down, wall and angle mount
No. of Axis
5
Repeatability
0.15 mm
Payload
50 kg
Weight (kg)
540
Technical Documents
FANUC M 710iC Series Medium Payload Intelligent Robot Brochure (PDF)We are always wanting to provide more information! In need of a technical document? Let us know!
