M-710iC/50S | 6 Axis, 50 kg Medium Payload Robot, 1360 mm reach With Controller
Overview

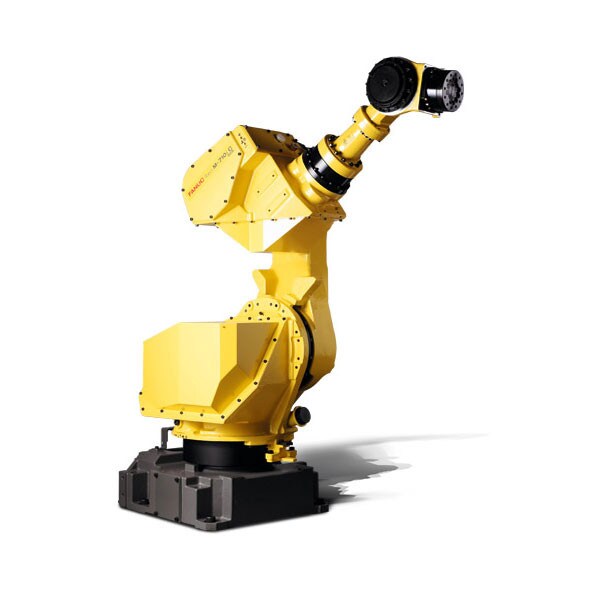

FANUC M-710iC/50S
6 Axis, 50 kg Medium Payload Robot, 1360 mm reach With Controller
The FANUC M-710iC is a medium payload robot with a wrist payload that can range between 12 - 70 kg.
The full cover of the M-710iC provides IP67-equivelent resistance to environmental conditions (dust and liquid).
The M-710iC is reliable for various applications, such as loading/unloading machined partsm de-burring and die cast loading.
Features & Benefits
- Designed specifically to access narrow machines and workspaces.
- Food grade grease for wrists, epoxy-coated white body for secondary food handling and processing applications such as tray picking, handling and transfer.
- Compact J3 arm on this model is ideally suited to entering tight openings without the risk of snagging.
- Flip over capability enables flexible cell design and reduced cycle times. Several robots are able to work together in close proximity without interference.
Technical Specifications
Application
Assembly, Spot Welding, Load Transfer, Dispensing, Arc Welding, Pick/Pack/Palletizing, Material Removal
Model
M-710iC/50S
Manufacturer
FANUC
SKU
M-710iC/50S
Reach
1359 mm
Installation
Floor, upside-down, wall and angle mount
No. of Axis
6
Repeatability
0.07 mm
Payload
50 kg
Weight (kg)
545
Technical Documents
FANUC M 710iC Series Medium Payload Intelligent Robot Brochure (PDF)We are always wanting to provide more information! In need of a technical document? Let us know!
