M180-950-K ATEX | M Motor, 1 .40 - 1 .83 kW, 950 RPM, Keyed Spindle, ATEX

(0)No Reviews yet
$3,034.83
$3793
$758.1700000000001
Warning: California Proposition 65 | Trade Regulations Advisory Notice
Item Ships free
Order total must be over $999.99, under 20 lbs and shipping within continental USA

Get your tool under our Flex Warranty!

We will fix it or replace it.

FLEX Warranty keeps your tools safe when manufacturer warranties come up short. Bad luck deserves good coverage.

*Manufacturer warranty only cover you for so long. FLEX Warranty extends and enhances your coverage for up to two years.

Non-Returnable
Spare Parts, Specialty and Custom items are non-returnable and non-refundable
Back

Overview

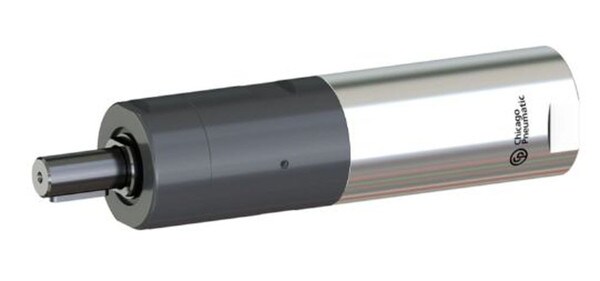

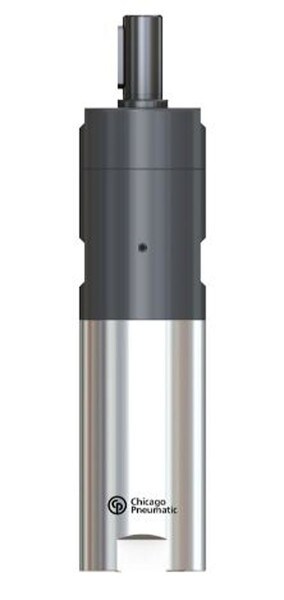

Chicago Pneumatic M180-950-K ATEX | M Motor, 1 .40 – 1 .83 kW, 950 rpm, Keyed Spindle, ATEX Certified Air Motor
Back

Technical Specifications

Model
M180-950-K ATEX
Manufacturer
Chicago Pneumatic
Free Speed (RPM)
950
SKU
2051479724
Stock Code
3
Max Torque (Ft Lb)
25
Max Torque (Nm)
34
Rated Power (kw)
1.83
Weight (lbs)
6.4
Starting Torque (ft lb)
38
Stall Torque (ft lb)
50
Series
M180
Air Cons. @ Load (cfm)
72
Rated Power (hp)
2.45
Stall Torque (Nm)
68
Weight (kg)
2.9
Air Consp. @ Free Speed (L/s)
34
Back

Technical Documents

    We are always wanting to provide more information! In need of a technical document? Let us know!
