M3901-80-TL ATEX | M Motor, 0.25 - 0.39 kW, 80 RPM, Threaded Spindle, Oil-Free, ATEX

(0)No Reviews yet
$2,223.63
$2779
$555.3699999999999
Warning: California Proposition 65 | Trade Regulations Advisory Notice
Item Ships free
Order total must be over $999.99, under 20 lbs and shipping within continental USA

Get your tool under our Flex Warranty!

We will fix it or replace it.

FLEX Warranty keeps your tools safe when manufacturer warranties come up short. Bad luck deserves good coverage.

*Manufacturer warranty only cover you for so long. FLEX Warranty extends and enhances your coverage for up to two years.

Non-Returnable
Spare Parts, Specialty and Custom items are non-returnable and non-refundable
Back

Overview

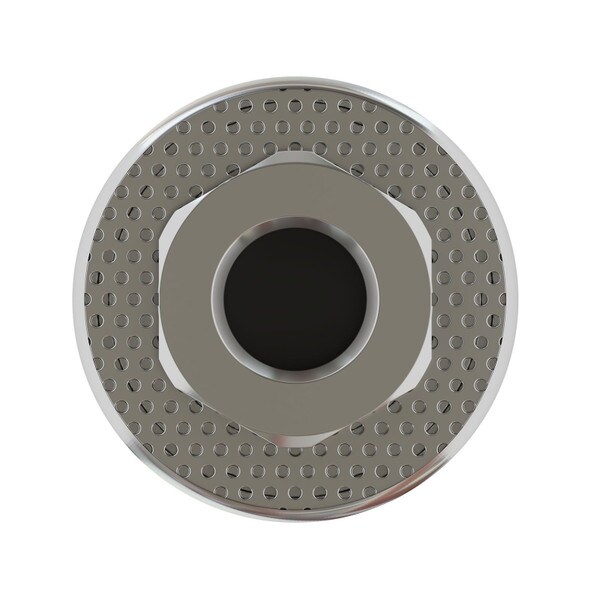

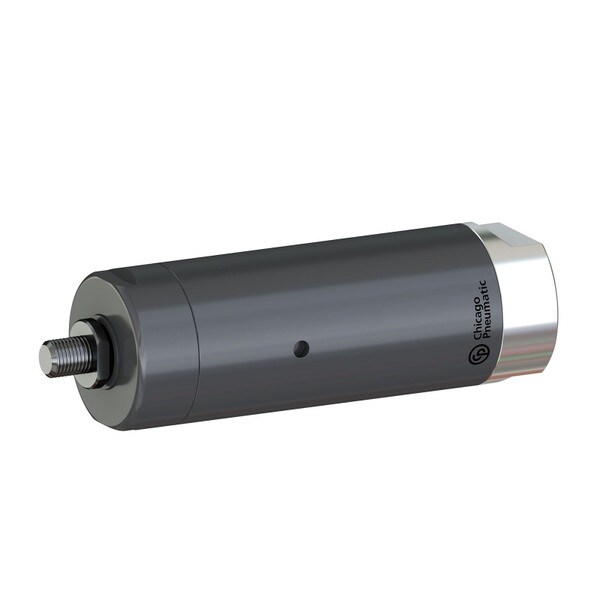

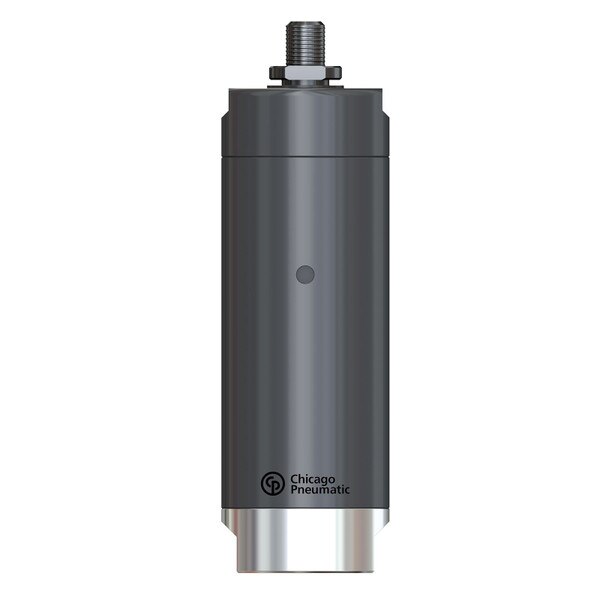

Chicago Pneumatic M3901-80-TL ATEX | M Motor, 0 .25 – 0 .39 kW, 80 rpm, Threaded Spindle, Oil-Free, ATEX Certified Air Motor
Back

Technical Specifications

Model
M3901-80-TL ATEX
Manufacturer
Chicago Pneumatic
Free Speed (RPM)
80
SKU
2051481714
Stock Code
3
Max Torque (Ft Lb)
65
Max Torque (Nm)
88
Rated Power (kw)
0.37
Weight (lbs)
5.8
Starting Torque (ft lb)
130
Stall Torque (ft lb)
130
Series
M39-KL/TL
Air Cons. @ Load (cfm)
16.8
Rated Power (hp)
0.5
Stall Torque (Nm)
176
Weight (kg)
2.6
Air Consp. @ Free Speed (L/s)
8.1
