Overview

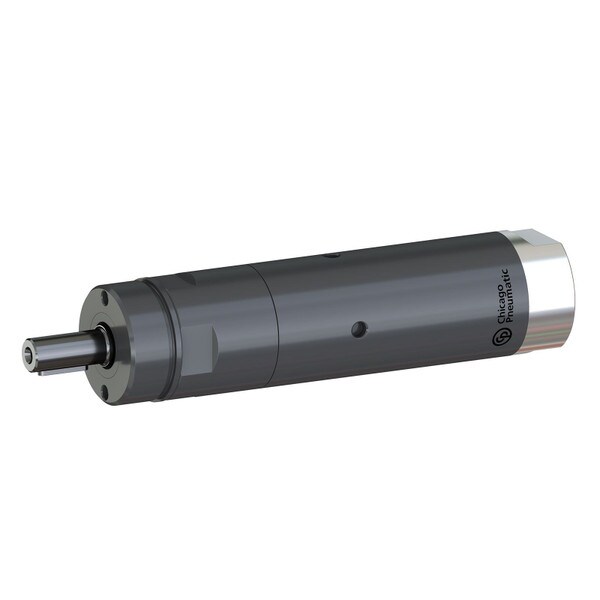

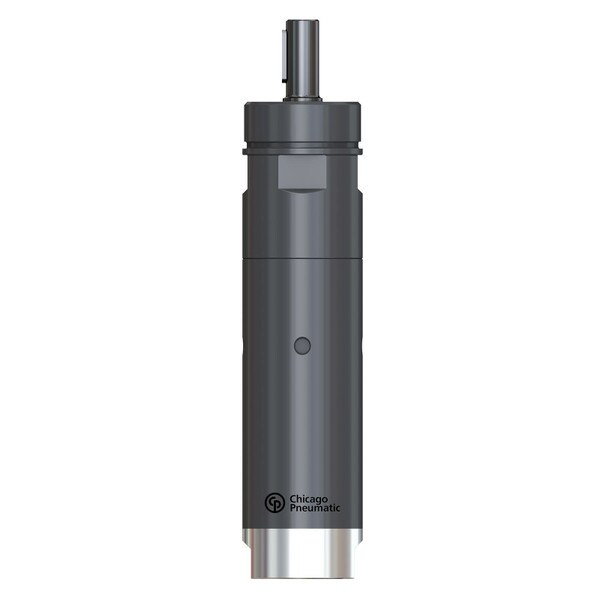

Chicago Pneumatic MR2501-640-KL ATEX | M Motor, Reversible, 0 .16 – 0 .25 kW, 640 rpm, Keyed Spindle, Oil-Free, ATEX Certified Air Motor
Back

Technical Specifications

Model
MR2501-640-KL ATEX
Manufacturer
Chicago Pneumatic
Free Speed (RPM)
640
SKU
6151780950
Stock Code
3
Max Torque (Ft Lb)
3.5
Max Torque (Nm)
4.7
Rated Power (kw)
0.16
Weight (lbs)
1.65
Stall Torque (ft lb)
7
Series
M25-KL/TL
Air Cons. @ Load (cfm)
10.6
Rated Power (hp)
0.21
Stall Torque (Nm)
9.4
Weight (kg)
0.75
Air Consp. @ Free Speed (L/s)
5
