AWS-MTM Torque Testers

Intellect Multiple Transducer Module

The AWS-MTM Series of torque testers & torque meters are designed to provide an economical way to measure and calibrate torque tools. Historically, transducer shafts had to be purchased individually and connected to a display via a switch box or rats nest of cables. With the MTM series, up to 6 transducer shafts can be connected to one display with only one cable.*

The small footprint also allows for a clean, well-organized work space. This helps eliminate the endless searching for cables, adaptors, and other accessories that may be needed.

Features such as independent CW and CCW calibration, multi-point linearization, metrology grade transducer shafts, and overload protection to 200% of full scale are standard. All of the above translate to a better product for you at an unbeatable price.

note: MTM2DP coupled with an MTM-4.

• MTM-4 Series with 4 built-in torsion shafts

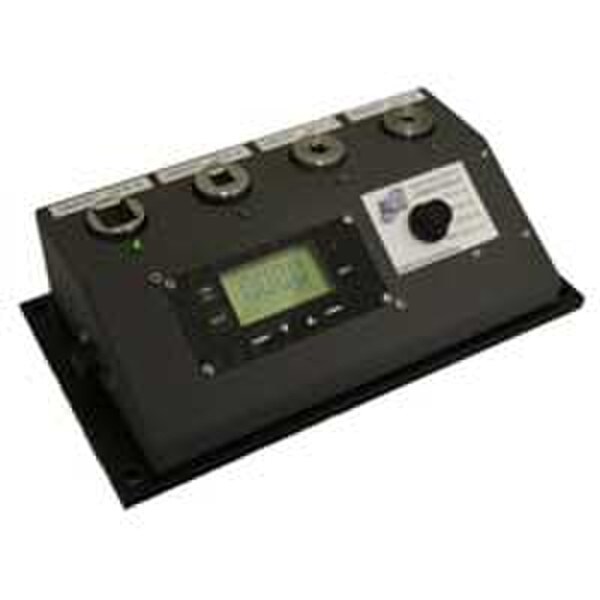

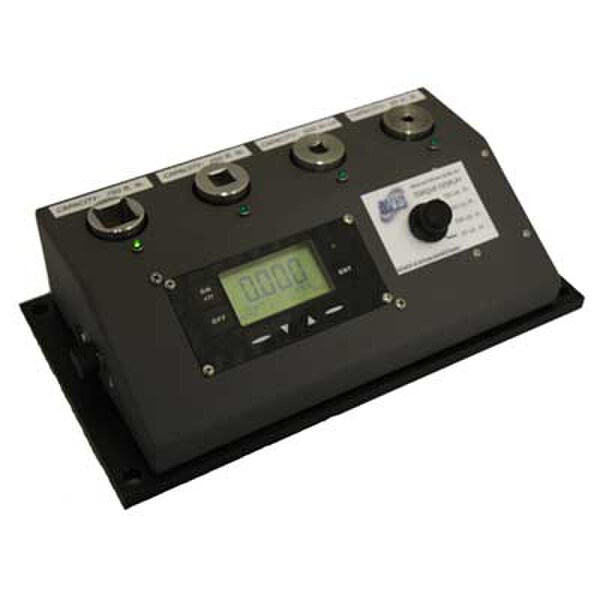

• MTM4DP Series with built-in display (see picture)
• All MTM modules are "Intellect" compatible, which means that they are plug-and-play compatible with all AWS series Intellect displays, including AWS-3000 w/Mul., AWS-5000, AWS-4050, AWS-4000, AWS-7000, and AWS-9000
• User-selectable ranges: just tell us what you need
• Built-in switch for easy transducer selection
• LED indicator shows active transducer
• Selected transducer capacity is displayed on the torque readout
• Accuracy of ± 0.5% of indicated, top 90% of full scale standard
• Accuracy of ± 0.25% of indicated, top 90% of full scale optional
• Extended calibration range of 5 - 100% of full scale optional
• Unique replaceable shaft design. If one shaft is damaged, replace that one shaft, not the entire unit. This saves on repair cost and down time

*Note: Ranges over 750 ft-lbs are supplied as cable connected external sensors.

• Battery Charger
• Rundown Adaptor (Joint Simulator)
• Operating Manual
• Certificate of Calibration

**Customized transducer configurations available. Please contact customer service for more information!
