M3I | Force-Torque Indicator, 110V
Overview
Mark-10 Force-Torque Indicator, 110V
Force-Torque Indicator, 110V, item# M3I, available to order online from Flexible Assembly Systems. Do you see this Mark-10 Force-Torque Indicator available elsewhere for a lower price? Contact Customer Service to price match!

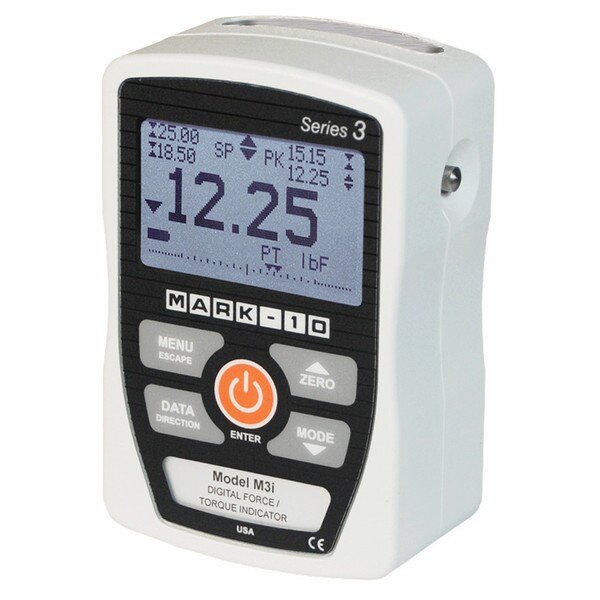

M3I Force-Torque Indicator by Mark-10

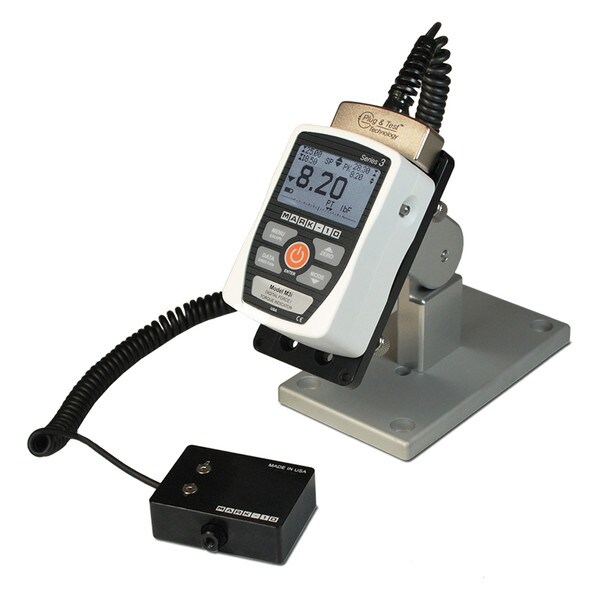

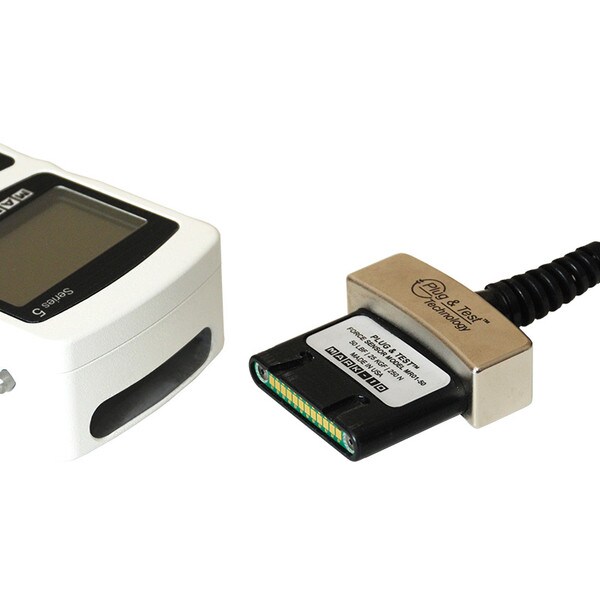

The 3i digital force / torque indicator is designed to work with a wide range of Mark-10 remote force and torque sensors. With exclusive Plug & Test™ technology, all calibration and configuration data is saved within the sensor’s smart connector, not the indicator, allowing for true interchangeability. In addition, all sensors are fully compatible with other Mark-10 indicators.
Features & Benefits
- Fully compatible with other Mark-10 indicators
- Ultra-compact size

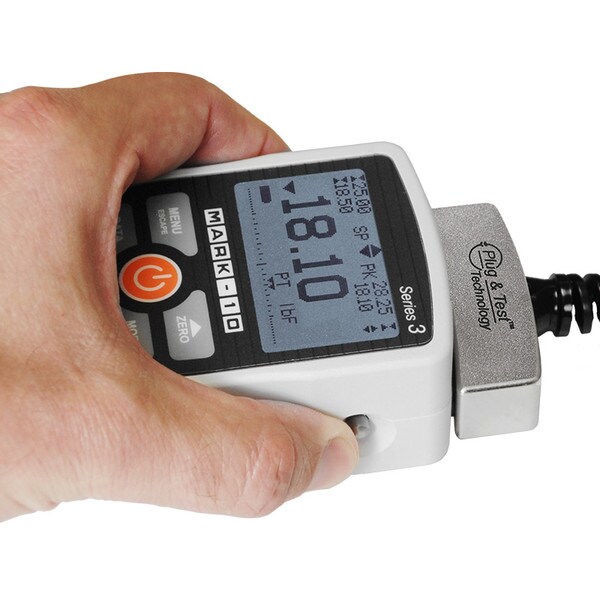

- Peak readings and set points always displayed
- High-speed 2,000 Hz sampling rate
Technical Specifications
Model
M3I
Overload Protection
150% of full scale
Type
Digital Force/Torque Indicator
Manufacturer
Mark-10
Warranty
3 Year Warranty
Capacity
10000 lbF / 50 kN / 5000 lbFin / 550 Nm
Load Capacity
10000 lbF / 50 kN / 5000 lbFin / 550 Nm
SKU
M3I
Stock Code
2
Dimensions
3.9 x 2.53 in
Power Source
AC or rechargeable battery
Output
USB Configurable to 115,200 baud
Weight (lbs)
0.7
Series
3i
Voltage
110V
Capacity (lbs)
10000
Accuracy
±0.2%
Technical Documents
Mark 10 3i Series Force Torque Indicators Brochure (PDF)- Mark 10 3i Series Force Torque Indicator User Guide (PDF)
- Mark 10 Force Indicator Comparison Chart (PDF)
- Mark 10 C# Code Example For Serial Communication (PDF)
We are always wanting to provide more information! In need of a technical document? Let us know!
