Overview

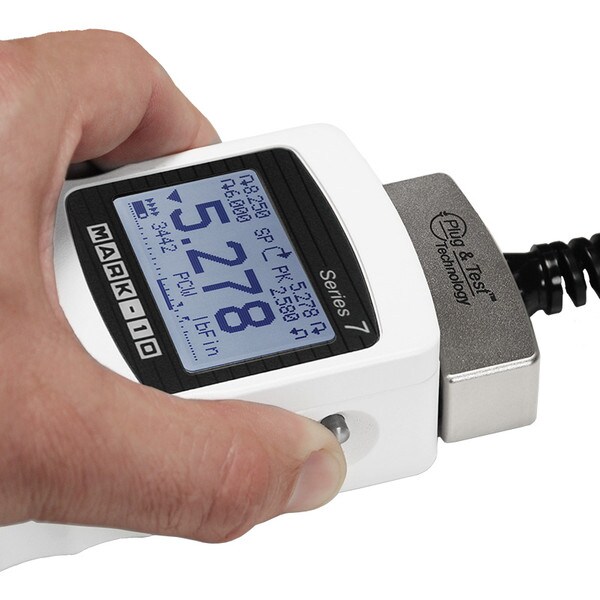

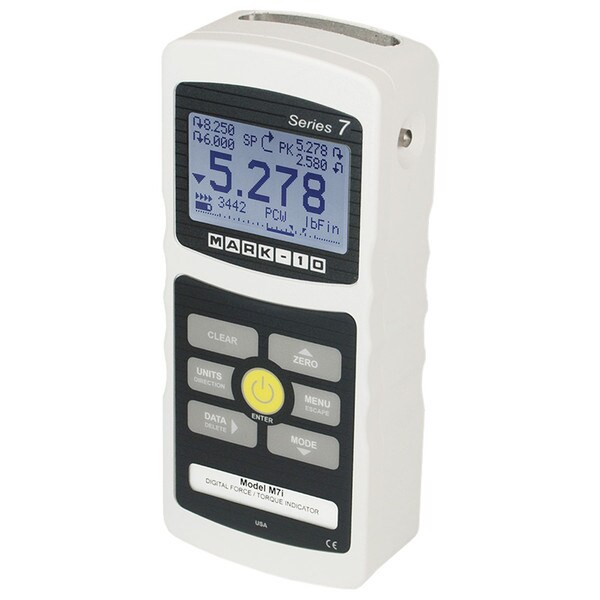

Enhance your force and torque measurement capabilities with the state-of-the-art Mark-10 M7I Force-Torque Indicator.

Mark-10 Professional Force-Torque Indicator, 110V

Designed to deliver precise measurements, this professional digital indicator is compatible with a wide range of Mark-10 remote force and torque sensors. With its innovative Plug & Test® technology, the M7I takes efficiency and convenience to new heights by storing calibration and configuration data within the sensor's smart connector, enabling true interchangeability.

The M7I Force-Torque Indicator is engineered to seamlessly integrate with a diverse range of Mark-10 remote force and torque sensors. Whether you require force or torque measurement, the M7I is designed to meet your specific application needs. With its versatile compatibility, you can easily switch between different sensors without the hassle of recalibration or reconfiguration.

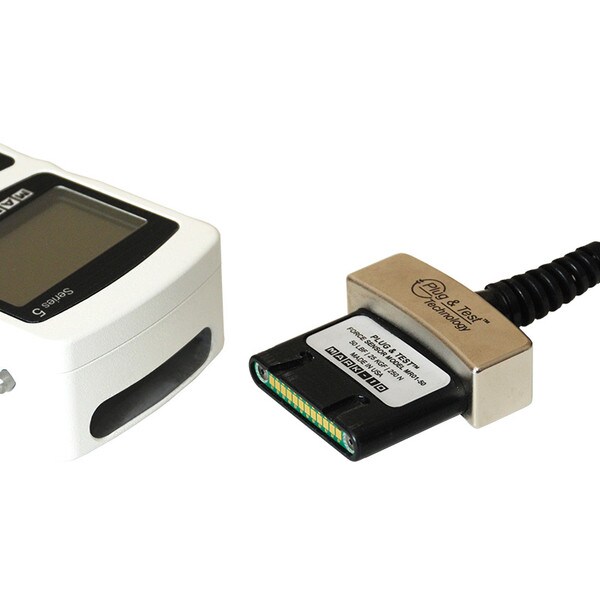

Mark-10's exclusive Plug & Test® technology is at the core of the M7I Force-Torque Indicator's remarkable capabilities. By saving calibration and configuration data directly within the sensor's smart connector, rather than the indicator itself, this innovative technology ensures true interchangeability. This means that you can simply plug in a different compatible sensor, and the M7I automatically recognizes and configures it, eliminating the need for tedious recalibration processes.

M7I Force-Torque Indicator by Mark-10

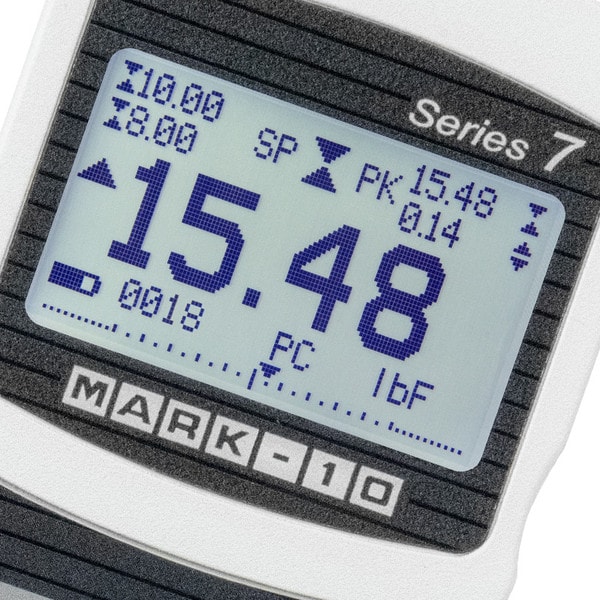

The M7I Force-Torque Indicator offers a user-friendly interface, ensuring ease of operation for both novice and experienced users. The clear display provides real-time measurement readings, as well as essential information such as unit selection, peak hold, and programmable set points.

The indicator also offers various measurement modes, including peak, track, and first peak, enabling you to capture the desired force and torque parameters accurately.

To further enhance your measurement capabilities, the M7I comes equipped with data output options. With USB and RS-232 interfaces, you can easily connect the indicator to a computer or data acquisition system, enabling seamless data transfer for analysis, documentation, and integration into your existing workflows.

Investing in the Mark-10 M7I Professional Force-Torque Indicator means investing in a high-performance measurement tool that ensures accuracy, compatibility, and efficiency.

Read More
Back

Features & Benefits

  • Designed to work with a wide range of Mark-10 remote force and torque sensors
  • Exclusive Plug & Test® technology for true interchangeability
  • Compatibility with other Mark-10 indicators
  • Calibration and configuration data saved within the sensor's smart connector
  • Seamless integration with a diverse range of force and torque sensors
  • Data output options with USB and RS-232 interfaces
  • Precise and reliable measurements for accurate data analysis
  • Streamlined workflow and increased efficiency with Plug & Test® technology
  • No need for recalibration or reconfiguration when switching sensors
  • User-friendly interface with a clear and intuitive display
  • Various measurement modes including peak, track, and first peak
  • Data output options for easy integration into existing workflows
  • User-friendly operation for both novice and experienced users
  • Robust construction for durability in demanding applications
Back

Technical Specifications

Model
M7I
Permissable Environmental Conditions
40 - 100°F, max. 96% humidity, non-condensating
Overload Protection
150% of full scale
Type
Digital Force/Torque Indicator
Manufacturer
Mark-10
Warranty
3 Year Warranty
Capacity
10000 lbF / 50 kN / 5000 lbFin / 550 Nm
Load Capacity
10000 lbF / 50 kN / 5000 lbFin / 550 Nm
SKU
M7I
Dimensions
5.88 x 2.53 in
Power Source
AC or rechargeable battery
Output
USB / RS-232, Mitutoyo (Digimatic), Analog, General Purpose, Set Points
Weight (lbs)
0.7
Series
7i
Voltage
110V
Capacity (lbs)
10000
Accuracy
±0.1%
Back

Technical Documents

We are always wanting to provide more information! In need of a technical document? Let us know!

Back

Frequently Asked Questions

Can the M7I Force-Torque Indicator work with other brands of force and torque sensors?

No, the M7I Force-Torque Indicator is specifically designed to work with a wide range of Mark-10 remote force and torque sensors. It is recommended to use Mark-10 sensors to ensure compatibility and optimal performance.
The Plug & Test® technology of the M7I is a game-changer for efficiency and convenience. It allows you to store calibration and configuration data within the sensor's smart connector, eliminating the need for recalibration or reconfiguration when switching sensors. This feature streamlines your measurement workflow, saving time and effort.
Yes, the M7I Force-Torque Indicator offers data output options with USB and RS-232 interfaces. You can easily connect the indicator to a computer or data acquisition system, enabling seamless data transfer for analysis, documentation, and integration into your existing workflows. This capability enhances your ability to capture and analyze critical force and torque data.
