MP300-5000 | Torque Multiplier, 5000 Nm, 3/4'' in x 1-1/2'' out
Overview

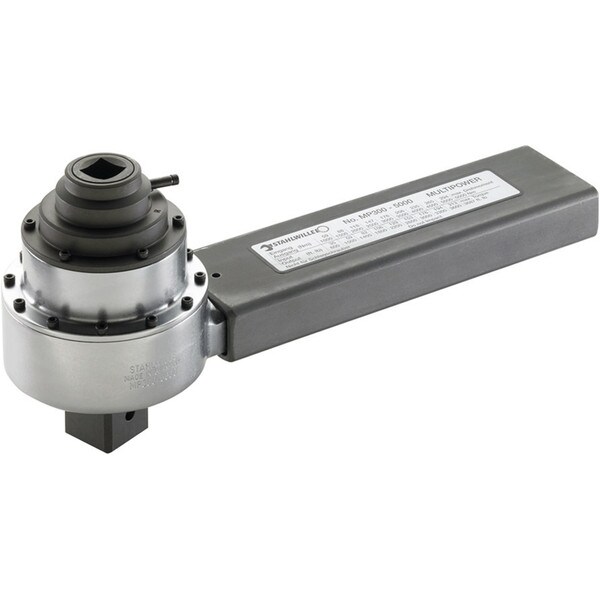

The Stahlwille MP300-5000 torque multiplier features a planetary gear system, it delivers smooth, consistent torque without requiring long lever arms or excessive force. Allowing for safe and accurate operation—even with stubborn or oversized fasteners.
Features & Benefits
- High Torque Output: Delivers up to 5000 Nm with ease—no need for oversized levers or extensions.
- Anti-Backlash Protection to ensure smooth, safe operation.
- Planetary Gear Drive: Enables efficient torque transfer with steady motion and reduced operator fatigue.
- Precision Engineering: Designed for consistent, accurate torque application over time.
- Heavy-Duty Construction: Made to withstand high load cycles and harsh working environments.
Technical Specifications
Manufacturer
Stahlwille
SKU
53035000
Model
MP300-5000
Type
Torque Multiplier
Size
5000
Max Torque Output (Nm)
5000
Max Torque Input (Nm)
294
Max Torque Input (Ft lb)
217
Gear Ratio
20 : 1
Torque Ratio
1 : 17
Input Drive
3/4'' Square
Output Drive
1-1/2'' Square
Length (mm)
400
Weight (g)
10400
Weight (lbs)
22.93
Technical Documents
We are always wanting to provide more information! In need of a technical document? Let us know!
Frequently Asked Questions
What does a torque multiplier do?
Is the MP300-5000 compatible with standard torque wrenches?
Yes. While optimized for Stahlwille torque wrenches, the MP300-5000 can be used with other quality torque tools via appropriate adapters.
<p>Anti-Backlash reduces kickback when releasing torque, improving safety and ensuring smoother operation on high-torque connections.</p>
