P-350iA/45 | 6 Axis, 45 kg Paint Robot, 2606 mm reach
Overview

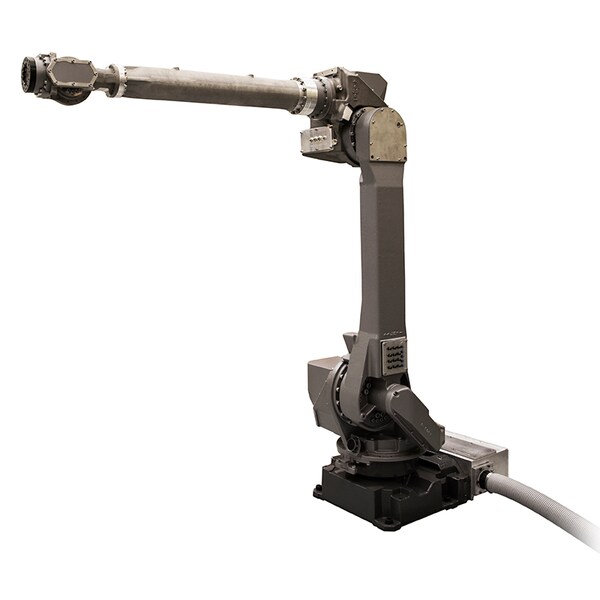

FANUC P-350iA/45
6 Axis, 45 kg Paint Robot, 2606 mm reach
The P-350iA/45 is a heavy payload robot Class 1/Division 1 rated robot with a wrist payload of 45 kg.
The P-350iA/45 is designed for flexibility for use in a wide variety of hazaroud applications:
- Paint
- Sealer
- Surface Cleaning and Prep
- Material Handling
- Material Removal
- Inspection
- Industry's largest payload capacity for a Class 1/Division 1 approved robot
- IP67 Rating for severe dust and liquid protection
- Ability to support EOAT tool changes packages
- Highest Accuracy Class 1/Division 1 rated robot in the industry
- Multi-Axis capability with purged Auxiliary motor boxes
Features & Benefits
- Ideal for aerospace applications, the P-350iA boasts the largest payload capacity.
- Designed for maximum accuracy across a wide range of painting and dispensing applications and come with numerous features that enable high throughput, optimal quality, and low operating costs
Technical Specifications
Application
Painting/Coating, Material Removal, Spot Welding, Dispensing
Model
P-350iA/45
Manufacturer
FANUC
SKU
P-350iA/45
Reach
2606 mm
Installation
Floor, upside-down, wall and angle mount
No. of Axis
6
Repeatability
0.1 mm
Payload
45 kg
Weight (kg)
590
Technical Documents
FANUC P 350iA Paint Robot Brochure (PDF)We are always wanting to provide more information! In need of a technical document? Let us know!
