P-50iB | 6 Axis, 15 kg Paint Robot, 1800 mm reach
Overview

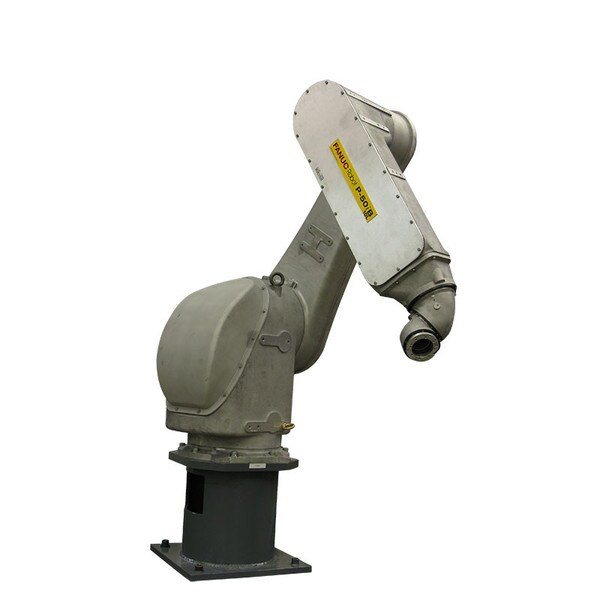

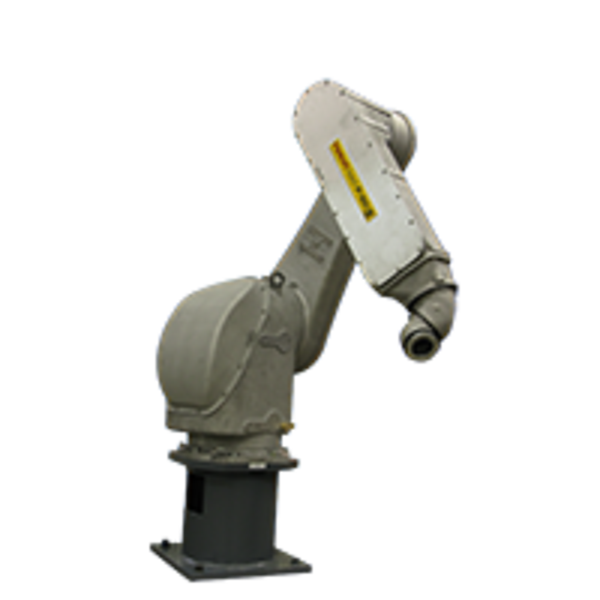

FANUC P-50iB
6 Axis, 15 kg Paint Robot, 1800 mm reach
Features:
- Easily configured left or right hand arm to maintain symmetry across the booth
- Designed for ease of maintenance and easy access to all critical components
- High arm and wrist payload design supports a variety of applications including rotary atomizers, conventional and electrostatic spray guns and multi-gun configurations
- Ability to package process components in the outer arm in close proximity to the applicator for rapid, accurate and consistent application performance
- 140° hollow wrist to allow for tight process demands
Features & Benefits
- Ideal painting and coating solution for almost any industry
- Inner diameter of 68 mm from J4 to J6 arm to achieve top product quality by eliminating contamination from debris falling from exposed paint hoses.
- Dedicated and powerful applications software PAINT TOOL available
Technical Specifications
Application
Painting/Coating, Material Removal, Spot Welding, Dispensing
Model
P-50iB
Manufacturer
FANUC
SKU
P-50iB
Reach
1800 mm
Installation
Floor, upside-down, wall and angle mount
No. of Axis
6
Repeatability
0.2 mm
Payload
10 kg
Weight (kg)
364
Technical Documents
FANUC P 50iB Series Paint Robot Brochure (PDF)We are always wanting to provide more information! In need of a technical document? Let us know!
