Overview

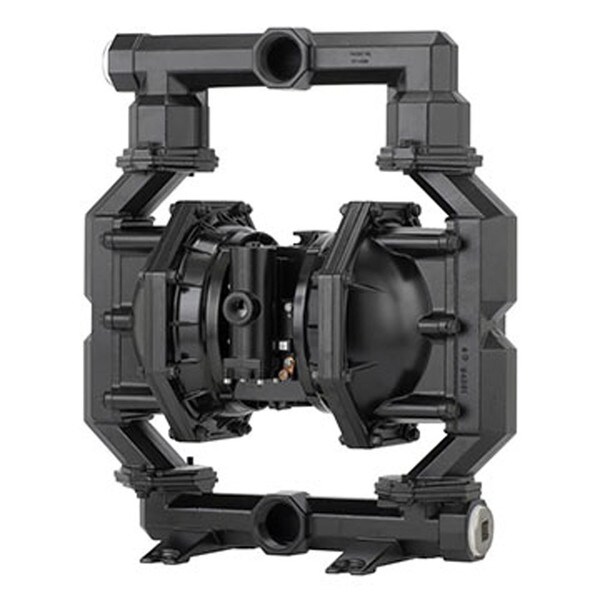

ARO 2 In. Aluminum Flap Valvediaphragm Pump, 172 Gpm

PF20A-AAS-SVV-B

PF20A-AAS-SVV-B, 2 In. Aluminum Flap Valvediaphragm Pump, 172 Gpm by ARO

ARO PF20A-AAS-SVV-B by is an ideal pump that you'll need for your application. Composed on high-grade compoents and pieces, the ARO PF20A-AAS-SVV-B is a diaphragm that is matched second-to-none. Need help with configuring an ARO diaphragm pump or ordering the PF20A-AAS-SVV-B? Contact Flexible Assembly Systems at 800.696.7614 today!

ARO PF20A-AAS-SVV-B Pump Data
  • Fluid Section Type: Aluminum
  • Displacement Per Cycle: 1.4 gallons
  • Fluid Connection: N.P.T.F. Thread
  • Wetted Parts: Aluminum
  • Seat Material: Stainless Steel
  • Flap Material: Viton
  • Diaphragm Material: Viton
Back

Features & Benefits

  • Able to handle 2'' semi-solids and 3/4'' solid materials.
  • Simul-Shift™ valve provides ultra-positive, reliable shift signal
  • ARO's patented 'Unbalanced' air valve ensures no-stall operation
Back

Technical Specifications

Seats
Stainless Steel
Material
Aluminum
Diaphragm
Viton
Displacement Per Cycle (gallons)
1.4
Fluid Section Type
Aluminum
Type
Diaphragm Pump
Max Air Pressure (psi)
120
Max Fluid Flow (gpm)
172
Manufacturer
ARO
SKU
PF20A-AAS-SVV-B
Diameter - mm
2''
Stock Code
3
Connection
NPTF
Weight (lbs)
74
Ratio
1:1
Hardware
Stainless Steel
Series
Flap Valve
Diameter - in
2
