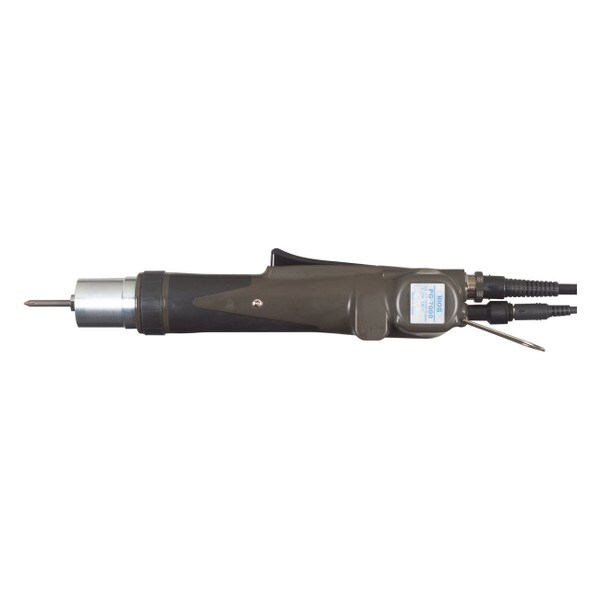

PG-7000 | Electric Torque Screwdriver, 1 - 2.8 Nm, built-in torque sensor
Overview
Introducing the HIOS PG-7000 Electric Torque Screwdriver, a revolutionary assembly tool that combines precision, efficiency, and data management capabilities. Engineered by HIOS, this electric torque screwdriver takes your fastening operations to new heights with its advanced features and user-friendly design.
- Min Torque(Nm): 1
- Max Torque(Nm): 2.8
- Drive Size: H5
- Free Speed(RPM): 960
- Start Type: Lever Start
- Manufacturer: HIOS
Compatible power supply T-70BL sold separately.
Features & Benefits
- Unrivaled Precision: With a torque range of 1 - 2.8 Nm, the PG-7000 delivers exceptional precision for your fastening needs, ensuring consistent and accurate results.
- Built-in Torque Sensor: The built-in torque sensor automatically judges every fastening, providing real-time feedback on whether the fastening is OK or NG. This feature minimizes errors and guarantees quality control.
- Versatile Drive Size: The H5 drive size offers compatibility with various screw types, making the PG-7000 suitable for a wide range of applications.
- Data Management: The PG-7000 allows you to save fastening data by connecting to an external device. This capability enhances traceability, enables analysis, and helps optimize your assembly processes.
Technical Specifications
Series
PG
Type
Electric Torque Screwdriver
Grip Type
Inline
Drive size
H5
Free Speed (RPM)
960
Torque Range (in lb)
8.9 - 24.8
Torque Range (Nm)
1 - 2.8
Torque Range (kgf cm)
10 - 28.6
Technical Documents
HIOS Electric Torque Screwdrivers Brochure (PDF)We are always wanting to provide more information! In need of a technical document? Let us know!
Frequently Asked Questions
What is the torque range of the PG-7000?
What type of application is the PG-7000 best suited for?
Electric Screwdrivers like the PG-7000, are most commonly used for medium to heavy assembly applications where precise torque control is required.
How Fast is the PG-7000?
The PG-7000 can go up to 960 rpm.
How do I set the torque on the PG-7000?
There is a mechanical adjustment on the tool but you will require a digital torque tester with a run down adapter (joint simulator) to validate the output torque of the tool. Please click here for a link to our selection of torque testers.
Does the PG-7000 have a warranty?
Most manufacturers have a one year warranty, free from defects. However, the Flex Warranty offers two more additional years of coverage.
