PLUTO6D/TA | Inline Electric Screwdriver, 53.1 in lbs, 1/4'' hex, Torque & Angle
Overview

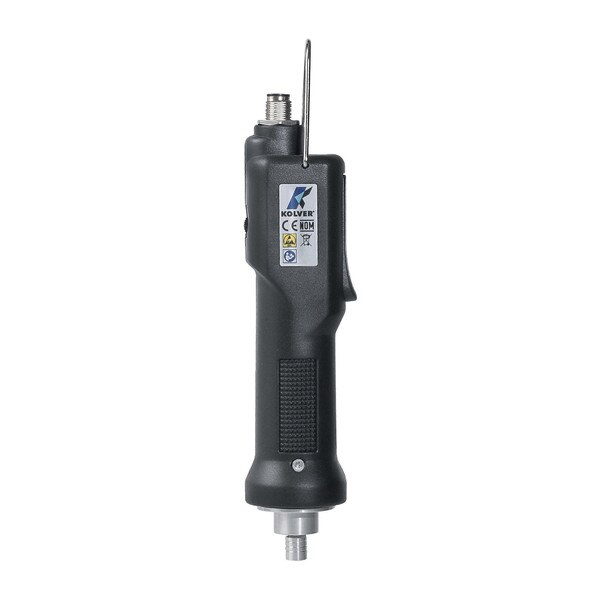

Introducing the Kolver PLUTO6D/TA Inline Electric Screwdriver, a powerful and versatile assembly tool designed to streamline your fastening processes. Engineered by Kolver, this inline electric screwdriver combines precision, efficiency, and durability to take your assembly operations to the next level.
- Torque Range: 7.5 - 53.1 in lbs (0.85 - 6 Nm)
- Speed Range: 200 - 850 rpm
- Drive Size: 1/4'' Hex
- Repeatability: +/-5%
- Power Supply: EDU2AE/TOP/TA (not included)
- Manufacturer: Kolver
Available Controller EDU2AE/TOP/TA sold separately
Features & Benefits
- High Torque Capacity: With a maximum torque of 53.1 in lbs (6 Nm), the PLUTO6D/TA is capable of handling a wide range of fastening applications, making it an ideal choice for various industries.
- 1/4'' Hex Drive: The 1/4'' hex drive provides versatility and compatibility with a wide range of screwdriver bits, ensuring seamless integration into your existing assembly setup.
- Compact and Inline Design: The inline design of the PLUTO6D/TA allows for easy access in tight spaces, making it ideal for use in confined areas or on complex assembly lines.
- Torque & Angle Control: The PLUTO6D/TA offers precise torque and angle control, allowing you to achieve accurate and consistent fastening results. This feature is particularly valuable in applications where precise tightening is crucial.
Technical Specifications
Min Torque - In Lbs
7.5
Max Torque - In Lbs
53.1
Min Torque - Nm
0.85
Max Torque - Nm
6
Style
Inline
Drive Size
1/4'' hex
Free Speed - rpm
850
Type
Electric Screwdriver
Output
1/4 in. Hex
Technical Documents
Kolver Torque and Angle Control Screwdrivers Brochure (PDF)We are always wanting to provide more information! In need of a technical document? Let us know!
Frequently Asked Questions
What is the torque range of the PLUTO6D/TA?
What type of application is the PLUTO6D/TA best suited for?
Electric Screwdrivers like the PLUTO6D/TA, are most commonly used for medium to heavy assembly applications where precise torque control is required. The PLUTO6D/TA is an Angle Head model.
How do I set the torque on the PLUTO6D/TA?
There is a mechanical adjustment on the tool but you will require a digital torque tester with a run down adapter (joint simulator) to validate the output torque of the tool. Please click here for a link to our selection of torque testers.
Does the PLUTO6D/TA have a warranty?
Most manufacturers have a one year warranty, free from defects. However, the Flex Warranty offers two more additional years of coverage.
