Paint Mate 200iA/5L | 6 Axis, 5 kg Paint Robot, 892 mm reach
Overview

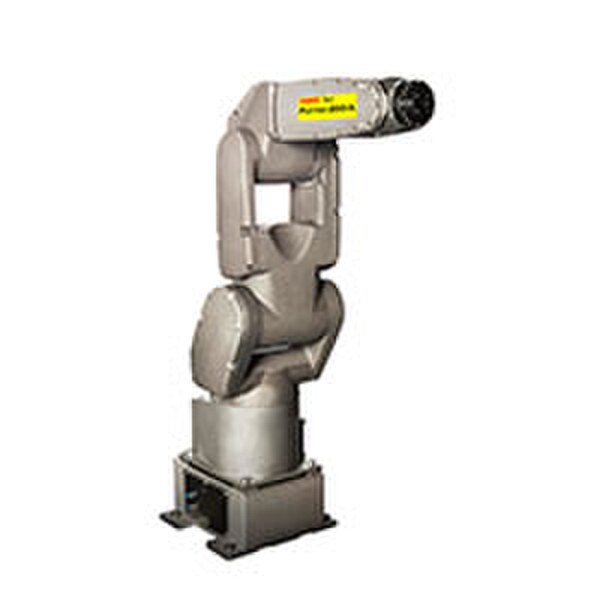

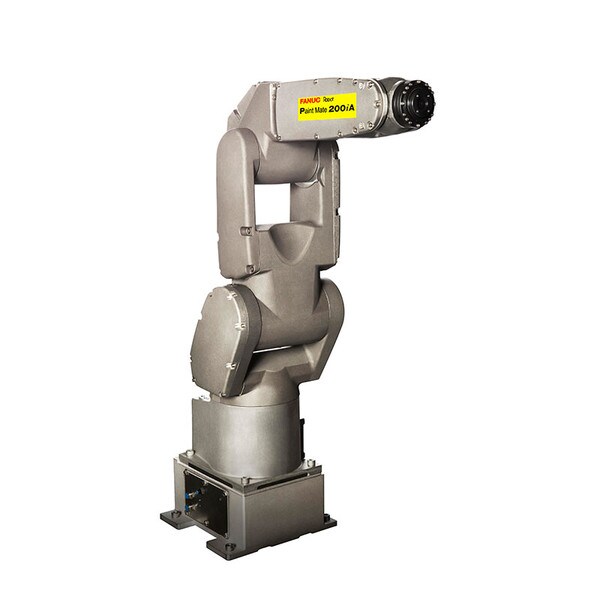

FANUC Paint Mate 200iA/5L
6 Axis, 5 kg Paint Robot, 892 mm reach
FANUC Robotics' Paint Mate robot is a compact, electric servo-driven paint robot with "best in class" performance designed for operation in a hazardous environment. Based on the LR Mate Series, the Paint Mate's speed and dexerity are a perfect fit for hazardous duty applications. The Paint Mate can be used for small parts painting or a material saving alternative to multiple fixed guns.
Applications:- Painting
- Coating
- Assembly and handling in hazardous environments
- Material removal where hazardous cooling chemicals are present
- Dispensing
- iPendant™ - a color, internet-ready teach pendant for even easier programmiong and custom cell user interface design
- Optional one or four pneumatic three-way solenoid valves located in the purge cavity for gun triggering capability
- Floor, invert, angle and wall mounting permits versatility for robot location and allows for minimal spray booth size
- Absolute seriel encoders elimiate the need for calibration at power-up
- Standard FANUC purge control
Features & Benefits
- Ideal for painting applications, assembly and handling operations requiring increased reach even in hazardous environments.
- Optional one or four pneumatic three-way solenoid valves located in the purge cavity for gun triggering capability.
- Handling and PaintTool software options available for easy setup and adjusting
Technical Specifications
Application
Painting/Coating, Material Removal, Spot Welding, Dispensing
Model
Paint Mate 200iA/5L
Manufacturer
FANUC
SKU
Paint Mate 200iA/5L
Reach
892 mm
Installation
Floor, upside-down, wall and angle mount
No. of Axis
6
Repeatability
0.03 mm
Payload
5 kg
Weight (kg)
37
Technical Documents
FANUC Paint Mate Series Robot Brochure (PDF)We are always wanting to provide more information! In need of a technical document? Let us know!
