EHS-M1TE | Horn with 32 pre-prog sounds, terminal block
Overview

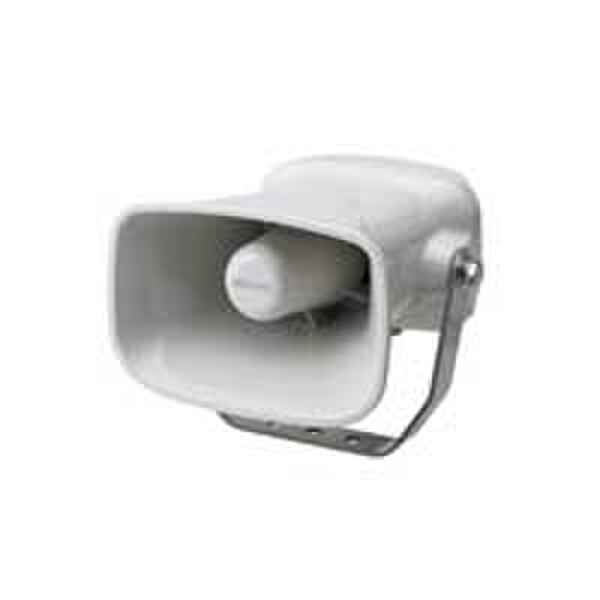

Introducing the Patlite EHS-M1TE Horn, an industrial-grade signaling device designed to enhance safety and communication in various manufacturing and processing environments. This versatile horn features an impressive array of 32 pre-programmed sounds, providing a diverse range of alerts and notifications to suit your specific needs.
- Voltage: DC12V to DC24V
- Channels: Bit Mode: 8 Channels / Binary Mode: 32 Channels
- Input Method: Terminal Bus Input
- Protection Rating: IP65
Features & Benefits
- 32 Pre-Programmed Sounds: Equipped with a wide selection of 32 pre-programmed sounds, the EHS-M1TE horn offers customizable alerts for different situations, ensuring effective communication and attention-grabbing signals.
- Terminal Block Input: The convenient terminal block input simplifies wiring and installation, allowing for seamless integration into your existing electrical systems.
- Durable Construction: Built to withstand harsh industrial environments, the EHS-M1TE horn boasts an IP65 protection rating, ensuring resistance to dust, water, and other contaminants.
Technical Specifications
Model
EHS-M1TE
Light Source
LED
Manufacturer
Patlite
SKU
EHS-M1TE
Stock Code
3
Voltage
DC12V - DC24V
Technical Documents
Patlite EHS EHV Data Sheet (PDF)We are always wanting to provide more information! In need of a technical document? Let us know!
