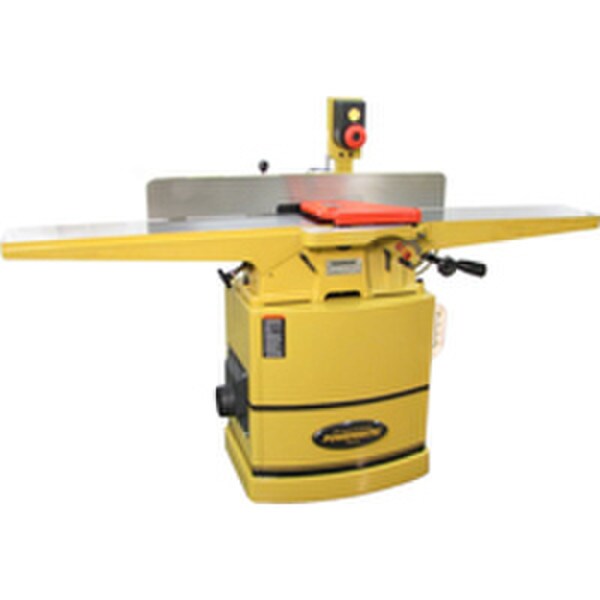

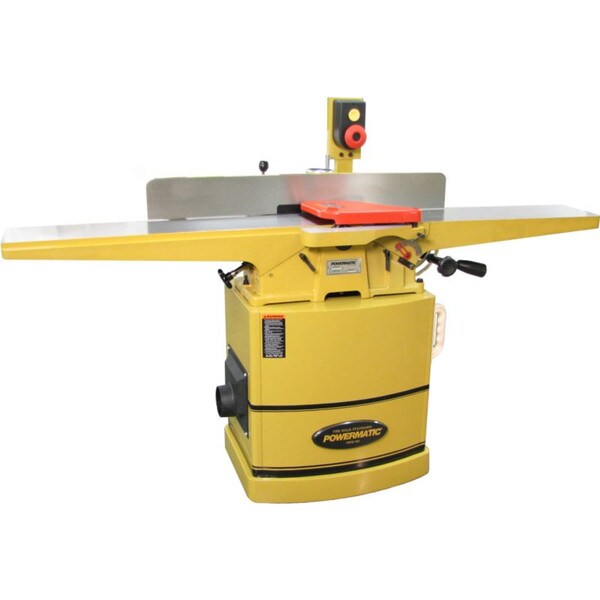

PM9-1610086K | 60HH, 8'' Jointer, 2HP 1PH 230V, Magnetic Switch, Helical Cutterhead

Powermatic 1610086K

60Hh, 8" Jointer, 2Hp 1Ph 230V, Magnetic Switch, Helical Cutterhead

This 8-inch jointer meets the demand for accuracy while combining unique, user-friendly functions. The infeed table lever can be used to rapidly position table height, then the handle rotated for fine-adjustment of cut depth. Fence tilting is accomplished by a worm gear system, smoothly operated by a simple handwheel. The tables provide 73” long extended support. A non-mar insert in the fence protects the table from scratches during adjustments. The jointer is available with a three knife cutterhead, or a helical cutterhead with four-sided knife inserts. The operating switch is high mounted for easy reach, and the push blocks have a magnetic base - store them on any metallic surface for instant access.

• Helical cutterhead with four-sided inserts provides smoother, quieter cutting and a superior finish
• Extra long tables are mounted on dovetailed ways, for extended workpiece support
• Adjustment lever offers quick infeed table positioning and fine-tuning of cut depth
• High mount switch for operator convenience
• Handwheel operated worm gear system for smooth fence tilting
• Magnetic push blocks can be stored on the machine within constant reach
• Non-mar fence insert protects table surface
