PM9-1791305 | DT65 Dovetailer, 1HP 1PH 230V, Pneumatic Clamping

Powermatic 1791305

Dt65 Dovetailer, 1Hp 1Ph 230V, Pneumatic Clamping

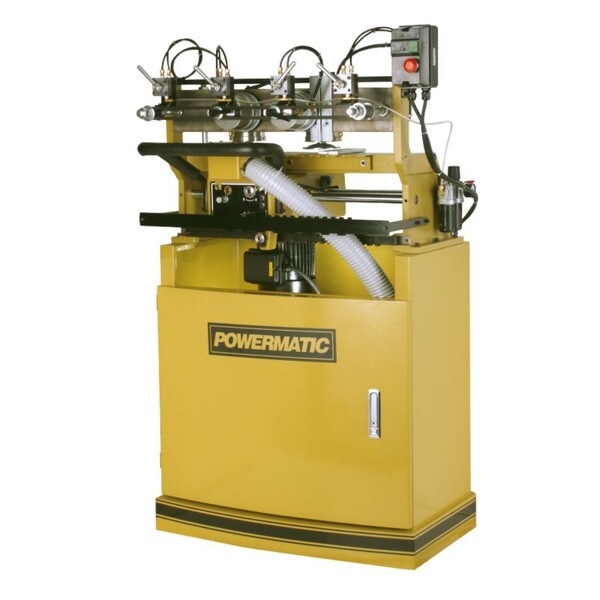

The POWERMATIC® DT65 Single Spindle Dovetailer gives quality to the most popular joints of drawer construction. It provides an affordable way to produce cleanly cut, professional dovetails that will enhance your products. The DT65 is complete with 1HP 230V 1 phase motor, pneumatic clamping, magnetic starter, carbide tipped cutter, and a four-sided template that produces dovetails on 1", 1-1/2", 2", and 2-1/2" centerlines. The use of different dovetail centerlines gives a unique custom appearance.

Features:

• Four centerlines - 1", 1-1/2", 2" and 2-1/2" - create a custom appearance
• Pneumatic clamping provides quick locking and unlocking of the work piece
• Eccentric spindle collet for resharpened cutters
• Spring loaded carriage makes for smooth, effortless dovetail cutting
• Cutter height of 3/16" to 3/4" accommodates different cutting depths and board thicknesses
• Extra large soft grip handle provides positive control and comfort
• The precision linear carriage bearings are sealed on both ends to eliminate dust buildup
• Visual stylus and template aid in guiding the carriage
• Material stops provide convenient positioning of the workpiece
• Cast iron and steel construction for added stability and durability
• 1HP motor transfers plenty of power via the drive belt to the spindle
• Magnetic starter for safety

Standard Equipment:

• Four-sided template
• Workstops
• Tool kit
• Dovetail bit
• Dust chute with hose
