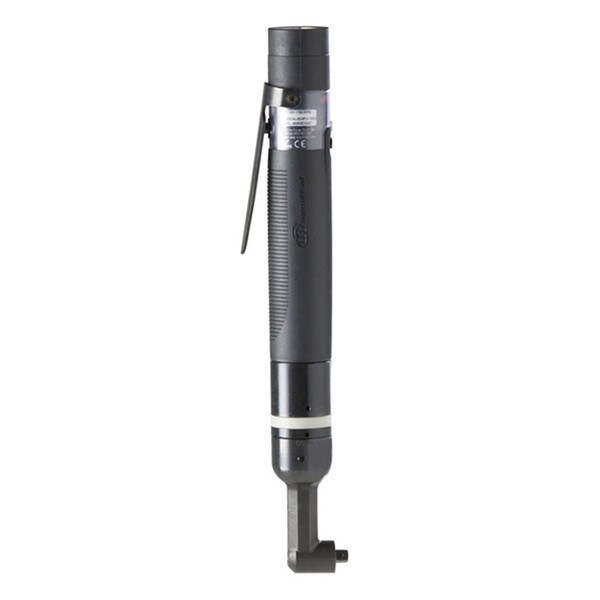

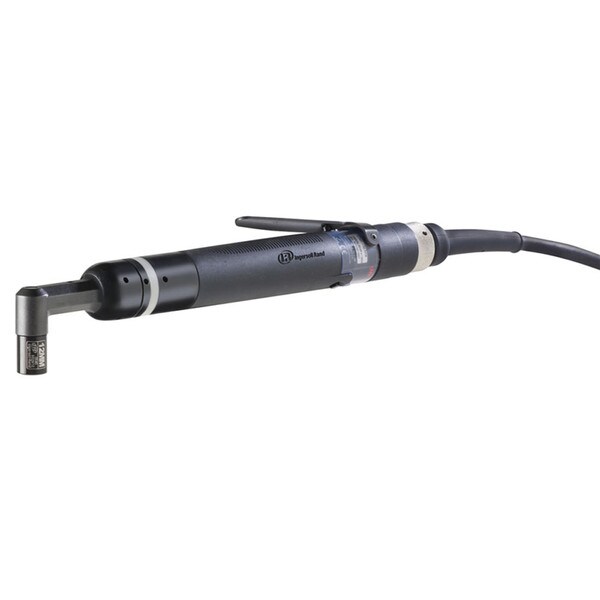

QE2AL005PA3Q04 | Angle Electric Nutrunner, 5 Nm, 1/4'' QC
Overview
Ingersoll Rand Angle Head Electric Nutrunner, 8.6 - 44.3 in lbs, 1/4 in. QC drive, 1590 rpm, Lever Start
Angle Head Electric Nutrunner, 8.6 - 44.3 in lbs, 1/4 in. QC drive, 1590 rpm, Lever Start, model# QE2AL005PA3Q04 by Ingersoll Rand; available to order. Do you see this Ingersoll Rand Electric Nutrunner available elsewhere for a lower cost? Contact Customer Service to price match!
QE2AL005PA3Q04 by Ingersoll Rand
Compact, lightweight and high-speed, the QE2 Angle series provide superior accuracy, ergonomics and durability to meet your critical fastening requirements and maximize your productivity. Featuring a torque range from 0.3 Nm to 400 Nm.
Features
- ESD-Safe & RoHS compliant
- Accuracy- The closed loop transducerized control provides exceptionable accuracy and traceability for advanced torque control strategies.
- Versatile - Customizable to your needs, these tools allow you to change torque output, body style, actuation and spindle type.
- Reliability - With a heavy duty gear train, a brushless DC motor and non-contacting switches, this series is as reliable as it is efficient.
- A Tool You Can Trust - Ingersoll Rand creates tools you can rely on, and this series’ non-contacting switches, heavy duty gear train and brushless DC motor are featured for this express purpose.
Features & Benefits
- Closed loop transducerized control provides exceptionable accuracy and traceability
- Heavy duty gear train, brushless DC motor and non-contacting switches
- ESD-Safe & RoHS compliant option available
- Work well with minimal distractions
Technical Specifications
Model
QE2AL005PA3Q04
Type
Electric Nutrunner
Drive size
1/4'' QC
Manufacturer
Ingersoll Rand
Motor Type
Type 2
Free Speed (RPM)
1590
SKU
QE2AL005PA3Q04
Start Type
Lever Start
Style
Angle Head
Min Torque (In Lb)
8.6
Max Torque (In Lb)
44.3
Min Torque (Nm)
1
Max Torque (Nm)
5
ESD Compliant
Yes
Mounting
Standard Gearcase
Output
Size 3
Series
QE2
Drive Type
1/4'' QC
Technical Documents
We are always wanting to provide more information! In need of a technical document? Let us know!
