QE8ZC070F22S08 | Offset Electric Nutrunner, 70 Nm, 1/2'' Square
Overview

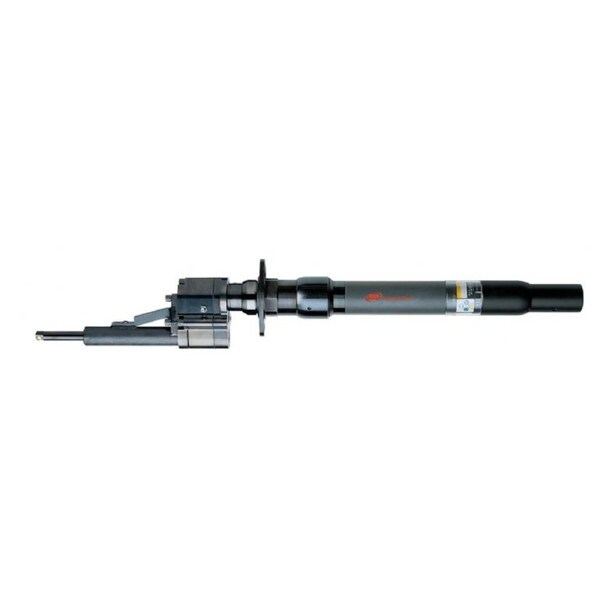

Ingersoll Rand Offset DC Electric Nutrunner, 70 Nm, 1/2 in. square drive
Offset DC Electric Nutrunner, 70 Nm, 1/2 in. square drive, model# QE8ZC070F22S08. Do you see this Ingersoll Rand DC Electric Nutrunner elsewhere for a lower price? Contact customer service to price match!
QE8ZC070F22S08 by Ingersoll Rand
High-speed and durable, the QE8 Inline delivers high power in a small package.
Features
- ESD-Safe & RoHS compliant
- Accuracy - The closed loop transducerized control provides exceptionable accuracy and traceability for advanced torque control strategies.
- Versatile - Due to a highly configurable platform, youÂ’re able to build and rebuild this tool to satisfy specific needs on a multitude of different jobs.
- Made for You - Not only is the QE8 inline equipped with an ergonomic grip and clevis attachment for easy handling, it also comes with a number of features designed to alert the user without distracting from the task at hand.
- Reliable - Ingersoll Rand builds tools that are meant to last, and thanks to the heavy duty gear train, non-contacting switches and brushless DC motor, the QE8 Inline is no different. It also comes with a preventative maintenance alarm, so youÂ’ll always be aware when your tool needs a tune up so it can continue to perform at its best.
Note: IC12D1A1AWS Controller required
Features & Benefits
- Closed loop transducerized control provides accuracy and traceability for advanced torque control strategies.
- Built with a brushless DC motor, non-contacting switches and a heavy duty gear train
- ESD-Safe & RoHS compliant
Technical Specifications
Model
QE8ZC070F22S08
Type
Electric Nutrunner
Drive size
1/2'' Square
Manufacturer
Ingersoll Rand
Motor Type
Type 8
Length (In)
36.97
Min Torque (Ft Lb)
5.2
Free Speed (RPM)
1470
SKU
QE8ZC070F22S08
Start Type
Remote Start
Style
Offset
Max Torque (Ft Lb)
52
Min Torque (Nm)
7
Max Torque (Nm)
70
ESD Compliant
Yes
Mounting
Flanged Gearcase
Square Drive
1/2
Output
300mm spindle, 50mm float
Weight (lbs)
6.61
Series
QE8
Drive Type
1/2'' square
